| Part Number | FGH25T120SMD_F155 |
|---|
| Manufacturer | Fairchild Semiconductor |
|---|
| Description | IGBT 1200V 50A 428W TO247-3 |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Discrete Semiconductor Products |
|---|
| Series | - |
|---|
| Family | IGBTs - Single |
|---|
| Featured Product |
650 V, 30A/40A/60A, Field Stop Trench, FS3 IGBT for Optimum Performance
|
|---|
| PCN Assembly/Origin |
Assembly Site Transfer 06/Apr/2015
|
|---|
| Standard Package | 30 |
|---|
| Packaging | Tube |
|---|
| IGBT Type | Trench Field Stop |
|---|
| Voltage - Collector Emitter Breakdown (Max) | 1200V |
|---|
| Current - Collector (Ic) (Max) | 50A |
|---|
| Current - Collector Pulsed (Icm) | 100A |
|---|
| Vce(on) (Max) @ Vge, Ic | 2.4V @ 15V, 25A |
|---|
| Power - Max | 428W |
|---|
| Switching Energy | 1.74mJ (on), 560μJ (off) |
|---|
| Input Type | Standard |
|---|
| Gate Charge | 225nC |
|---|
| Td (on/off) @ 25°C | 40ns/490ns |
|---|
| Test Condition | 600V, 25A, 23 Ohm, 15V |
|---|
| Reverse Recovery Time (trr) | 60ns |
|---|

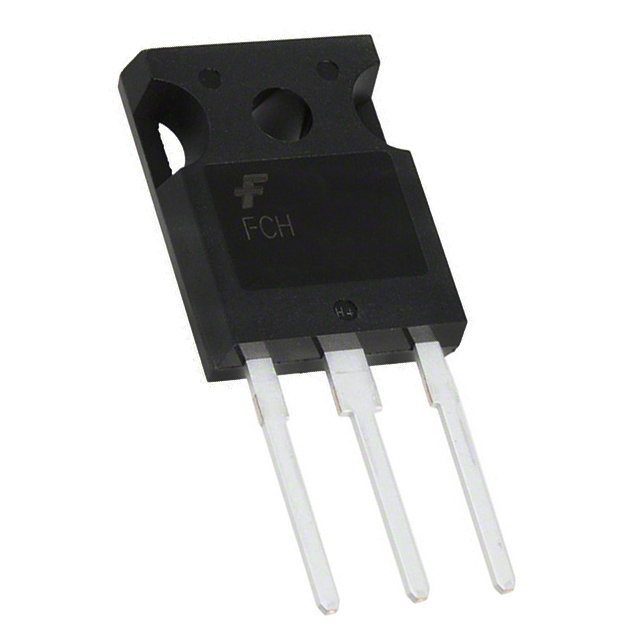

| Package / Case | TO-247-3 |
|---|
| Mounting Type | Through Hole |
|---|
| Supplier Device Package | TO-247 |
|---|
