| Part Number | APT15GP90BDQ1G |
|---|
| Manufacturer | Microsemi Power Products Group |
|---|
| Description | IGBT 900V 43A 250W TO247 |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Discrete Semiconductor Products |
|---|
| Series | POWER MOS 7? |
|---|
| Family | IGBTs - Single |
|---|
| Standard Package | 30 |
|---|
| Packaging | Tube |
|---|
| IGBT Type | PT |
|---|
| Voltage - Collector Emitter Breakdown (Max) | 900V |
|---|
| Current - Collector (Ic) (Max) | 43A |
|---|
| Current - Collector Pulsed (Icm) | 60A |
|---|
| Vce(on) (Max) @ Vge, Ic | 3.9V @ 15V, 15A |
|---|
| Power - Max | 250W |
|---|
| Switching Energy | 200μJ (off) |
|---|
| Input Type | Standard |
|---|
| Gate Charge | 60nC |
|---|
| Td (on/off) @ 25°C | 9ns/33ns |
|---|
| Test Condition | 600V, 15A, 4.3 Ohm, 15V |
|---|
| Reverse Recovery Time (trr) | - |
|---|

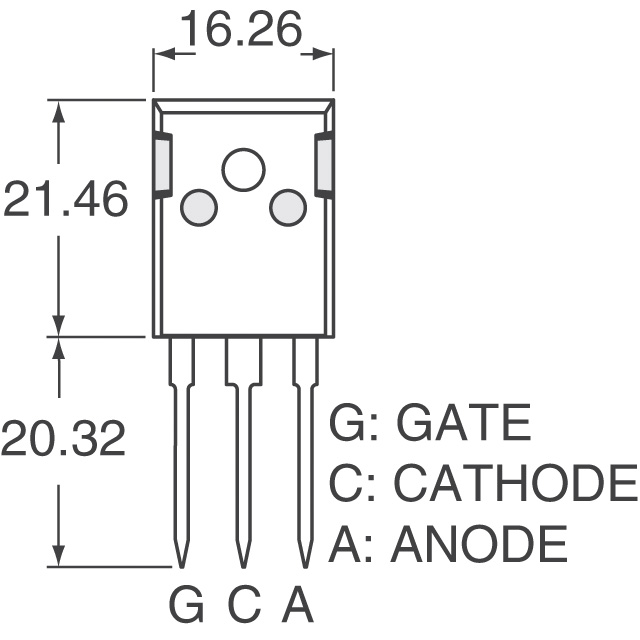

| Package / Case | TO-247-3 |
|---|
| Mounting Type | Through Hole |
|---|
| Supplier Device Package | TO-247 [B] |
|---|
| Online Catalog | Standard IGBTs |
|---|
| Other Names | APT15GP90BDQ1GMIAPT15GP90BDQ1GMI-ND |
|---|
