| Part Number | APT102GA60L |
|---|
| Manufacturer | Microsemi Power Products Group |
|---|
| Description | IGBT 600V 183A 780W TO264 |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Discrete Semiconductor Products |
|---|
| Series | - |
|---|
| Family | IGBTs - Single |
|---|
| Standard Package | 25 |
|---|
| Packaging | Tube |
|---|
| IGBT Type | PT |
|---|
| Voltage - Collector Emitter Breakdown (Max) | 600V |
|---|
| Current - Collector (Ic) (Max) | 183A |
|---|
| Current - Collector Pulsed (Icm) | 307A |
|---|
| Vce(on) (Max) @ Vge, Ic | 2.5V @ 15V, 62A |
|---|
| Power - Max | 780W |
|---|
| Switching Energy | 1.354mJ (on), 1.614mJ (off) |
|---|
| Input Type | Standard |
|---|
| Gate Charge | 294nC |
|---|
| Td (on/off) @ 25°C | 28ns/212ns |
|---|
| Test Condition | 400V, 62A, 4.7 Ohm, 15V |
|---|
| Reverse Recovery Time (trr) | - |
|---|

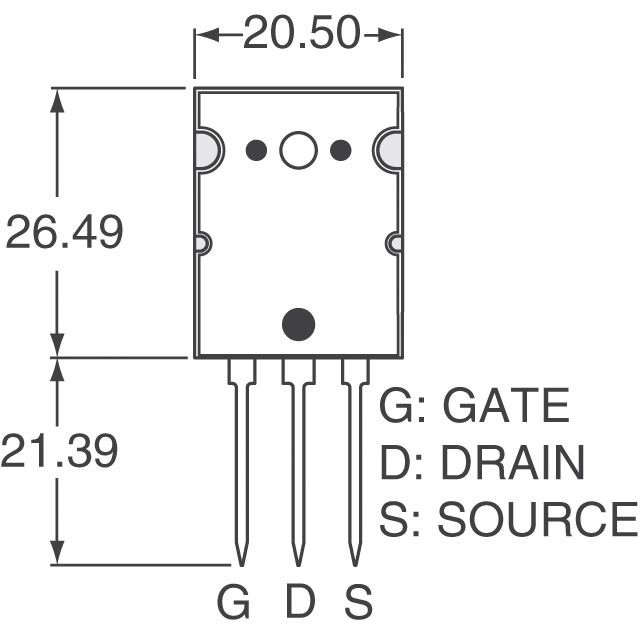

| Package / Case | TO-264-3, TO-264AA |
|---|
| Mounting Type | Through Hole |
|---|
| Supplier Device Package | TO-264 [L] |
|---|
| Online Catalog | Standard IGBTs |
|---|
| Other Names | APT102GA60LMIAPT102GA60LMI-ND |
|---|
