| Part Number | NGTB40N120SWG |
|---|---|
| Manufacturer | ON Semiconductor |

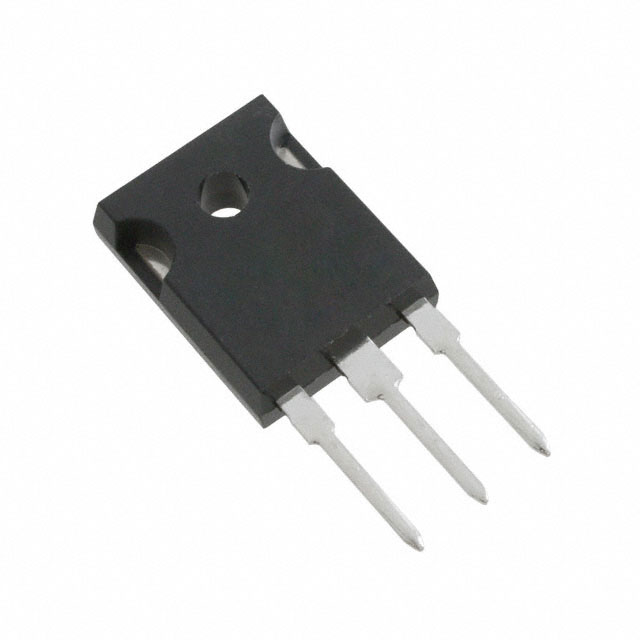

| Description | IGBT 40A 1200V TO-247 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 70 1,080 - Factory Stock |
| Datasheet | NGTB40N120SWG |
| Minimum Order: $100 USD | |
| Request for Quote to us through Email or Phone call on quanitities greater than those displayed or for price adjustment. | |
NGTB40N120SWG
-
- USD 6.66
Product Details
| Part Number | NGTB40N120SWG |
|---|---|
| Manufacturer | ON Semiconductor |
| Description | IGBT 40A 1200V TO-247 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Category | Discrete Semiconductor Products |
| Series | - |
| Family | IGBTs - Single |
| PCN Design/Specification | FPCN20461X 27/nov/2015 |
| Standard Package | 30 |
| Packaging | Tube |
| IGBT Type | Trench |
| Voltage - Collector Emitter Breakdown (Max) | 1200V |
| Current - Collector (Ic) (Max) | 80A |
| Current - Collector Pulsed (Icm) | 200A |
| Vce(on) (Max) @ Vge, Ic | 2.4V @ 15V, 40A |
| Power - Max | 535W |
| Switching Energy | 3.4mJ (on), 1.1mJ (off) |
| Input Type | Standard |
| Gate Charge | 313nC |
| Td (on/off) @ 25°C | 116ns/286ns |
| Test Condition | 600V, 40A, 10 Ohm, 15V |
| Reverse Recovery Time (trr) | 240ns |
| Package / Case | TO-247-3 |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-247-3 |
| Online Catalog | Standard IGBTs |
| Other Names | NGTB40N120SWGOS |
