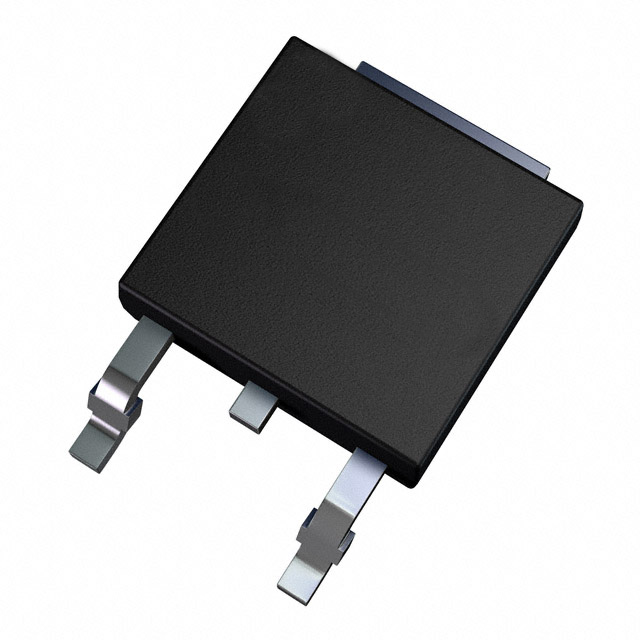

| Part Number | IRLR3715ZPBF |
|---|
| Manufacturer | Infineon Technologies Americas Corp. |
|---|
| Description | MOSFET N-CH 20V 49A DPAK |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Discrete Semiconductor Products |
|---|
| Series | HEXFET? |
|---|
| Family | FETs - Single |
|---|
| Product Training Modules |
High Voltage Integrated Circuits (HVIC Gate Drivers)
Discrete Power MOSFETs 40V and Below
|
|---|
| PCN Assembly/Origin |
Backend Wafer Transfer 23/Oct/2013
Warehouse Transfer 29/Jul/2015
|
|---|
| PCN Packaging |
Package Drawing Update 19/Aug/2015
|
|---|
| Standard Package | 75 |
|---|
| Packaging | Tube |
|---|
| FET Type | MOSFET N-Channel, Metal Oxide |
|---|
| FET Feature | Standard |
|---|
| Drain to Source Voltage (Vdss) | 20V |
|---|
| Current - Continuous Drain (Id) @ 25°C | 49A (Tc) |
|---|
| Rds On (Max) @ Id, Vgs | 11 mOhm @ 15A, 10V |
|---|
| Vgs(th) (Max) @ Id | 2.55V @ 250μA |
|---|
| Gate Charge (Qg) @ Vgs | 11nC @ 4.5V |
|---|
| Input Capacitance (Ciss) @ Vds | 810pF @ 10V |
|---|
| Power - Max | 40W |
|---|
| Mounting Type | Surface Mount |
|---|
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
|---|
| Supplier Device Package | D-Pak |
|---|
| Online Catalog | N-Channel Standard FETs |
|---|
