| Part Number | NVD5863NLT4G |
|---|
| Manufacturer | ON Semiconductor |
|---|
| Description | MOSFET N-CH 60V 14.9A DPAK-4 |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Discrete Semiconductor Products |
|---|
| Series | - |
|---|
| Family | FETs - Single |
|---|
| PCN Design/Specification |
Mold Compound Update 25/Feb/2015
Mold Compound Revision 24/Apr/2015
|
|---|
| Standard Package | 2,500 |
|---|
| Packaging | Tape & Reel (TR) |
|---|
| FET Type | MOSFET N-Channel, Metal Oxide |
|---|
| FET Feature | Standard |
|---|
| Drain to Source Voltage (Vdss) | 60V |
|---|
| Current - Continuous Drain (Id) @ 25°C | 14.9A (Ta), 82A (Tc) |
|---|
| Rds On (Max) @ Id, Vgs | 7.1 mOhm @ 41A, 10V |
|---|
| Vgs(th) (Max) @ Id | 3V @ 250μA |
|---|
| Gate Charge (Qg) @ Vgs | 70nC @ 10V |
|---|
| Input Capacitance (Ciss) @ Vds | 3850pF @ 25V |
|---|
| Power - Max | 3.1W |
|---|
| Mounting Type | Surface Mount |
|---|

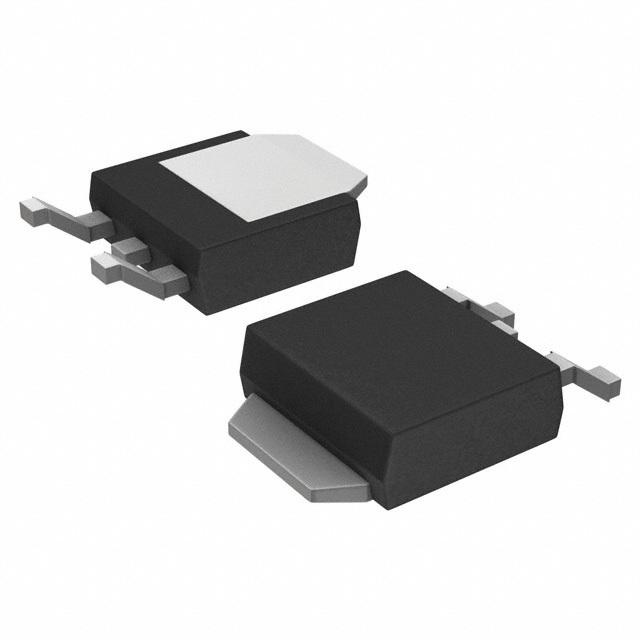

| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
|---|
| Supplier Device Package | D-Pak |
|---|
