| Part Number | FCP220N80 |
|---|---|
| Manufacturer | Fairchild Semiconductor |
| Description | MOSFET N-CH 800V 23A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 795 |
| Datasheet | FCP220N80 |
| Minimum Order: $100 USD | |
| Request for Quote to us through Email or Phone call on quanitities greater than those displayed or for price adjustment. | |
FCP220N80
-
- USD 6.60
Product Details
| Part Number | FCP220N80 |
|---|---|
| Manufacturer | Fairchild Semiconductor |
| Description | MOSFET N-CH 800V 23A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Category | Discrete Semiconductor Products |
| Series | SuperFET? II |
| Family | FETs - Single |
| Standard Package | 50 |
| Packaging | Tube |
| FET Type | MOSFET N-Channel, Metal Oxide |
| FET Feature | Standard |
| Drain to Source Voltage (Vdss) | 800V |
| Current - Continuous Drain (Id) @ 25°C | 23A (Tc) |
| Rds On (Max) @ Id, Vgs | 220 mOhm @ 11.5A, 10V |
| Vgs(th) (Max) @ Id | 4.5V @ 2.3mA |
| Gate Charge (Qg) @ Vgs | 105nC @ 10V |
| Input Capacitance (Ciss) @ Vds | 4560pF @ 100V |
| Power - Max | 278W |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |

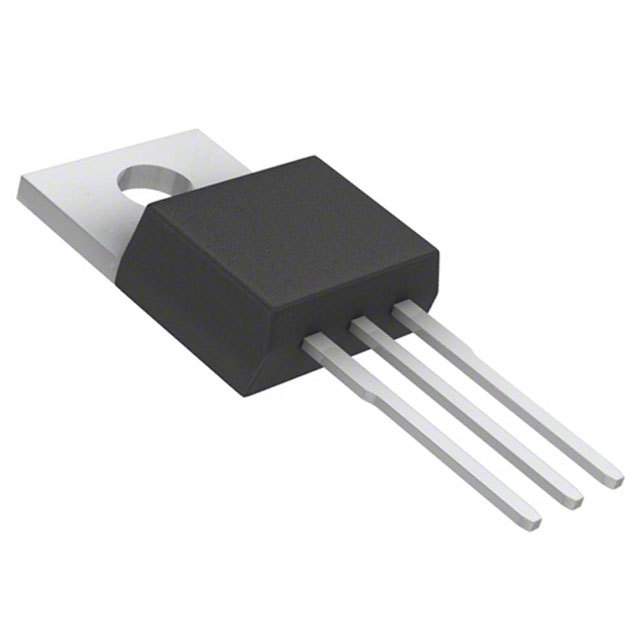

| Package / Case | TO-220-3 |
| Supplier Device Package | TO-220 |
