| Part Number | CSD17576Q5B |
|---|---|
| Manufacturer | Texas Instruments |
| Description | MOSFET N-CH 30V 100A 8VSON |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 10,000 |
| Datasheet | CSD17576Q5B |
| Minimum Order: $100 USD | |
| Request for Quote to us through Email or Phone call on quanitities greater than those displayed or for price adjustment. | |

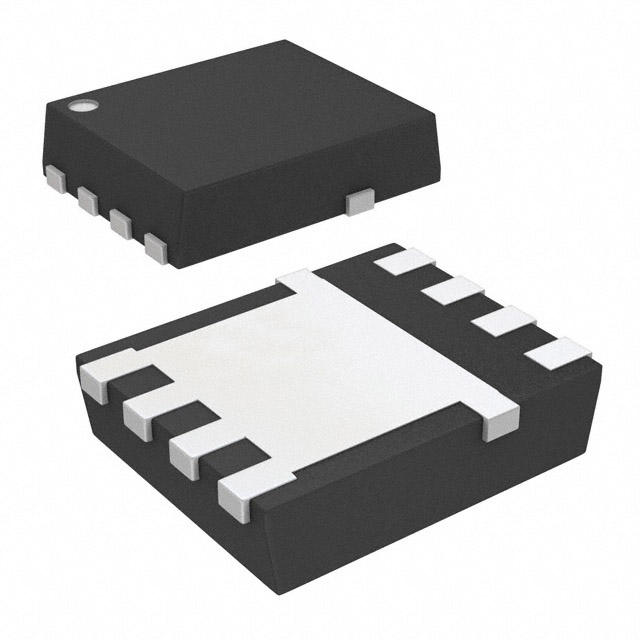

CSD17576Q5B
-
- USD 0.00
Product Details
| Part Number | CSD17576Q5B |
|---|---|
| Manufacturer | Texas Instruments |
| Description | MOSFET N-CH 30V 100A 8VSON |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Category | Discrete Semiconductor Products |
| Series | NexFET? |
| Family | FETs - Single |
| Manufacturer Product Page | CSD17576Q5B Specifications |
| Standard Package | 2,500 |
| Packaging | Tape & Reel (TR) |
| FET Type | MOSFET N-Channel, Metal Oxide |
| FET Feature | Standard |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25°C | 100A (Ta) |
| Rds On (Max) @ Id, Vgs | 2 mOhm @ 25A, 10V |
| Vgs(th) (Max) @ Id | 1.8V @ 250μA |
| Gate Charge (Qg) @ Vgs | 68nC @ 10V |
| Input Capacitance (Ciss) @ Vds | 4430pF @ 15V |
| Power - Max | 3.1W |
| Mounting Type | Surface Mount |
| Package / Case | 8-PowerTDFN |
| Supplier Device Package | 8-VSON (5x6) |
