| Part Number | SSM3J15FV,L3F |
|---|
| Manufacturer | Toshiba Semiconductor and Storage |
|---|
| Description | MOSFET P-CH 30V 0.1A VESM |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Discrete Semiconductor Products |
|---|
| Series | - |
|---|
| Family | FETs - Single |
|---|
| Standard Package | 1 |
|---|
| Packaging | Digi-Reel? |
|---|
| FET Type | MOSFET P-Channel, Metal Oxide |
|---|
| FET Feature | Standard |
|---|
| Drain to Source Voltage (Vdss) | 30V |
|---|
| Current - Continuous Drain (Id) @ 25°C | 100mA (Ta) |
|---|
| Rds On (Max) @ Id, Vgs | 12 Ohm @ 10mA, 4V |
|---|
| Vgs(th) (Max) @ Id | 1.7V @ 100μA |
|---|
| Gate Charge (Qg) @ Vgs | - |
|---|
| Input Capacitance (Ciss) @ Vds | 9.1pF @ 3V |
|---|
| Power - Max | 150mW |
|---|
| Operating Temperature | -55°C ~ 150°C (TJ) |
|---|
| Mounting Type | Surface Mount |
|---|

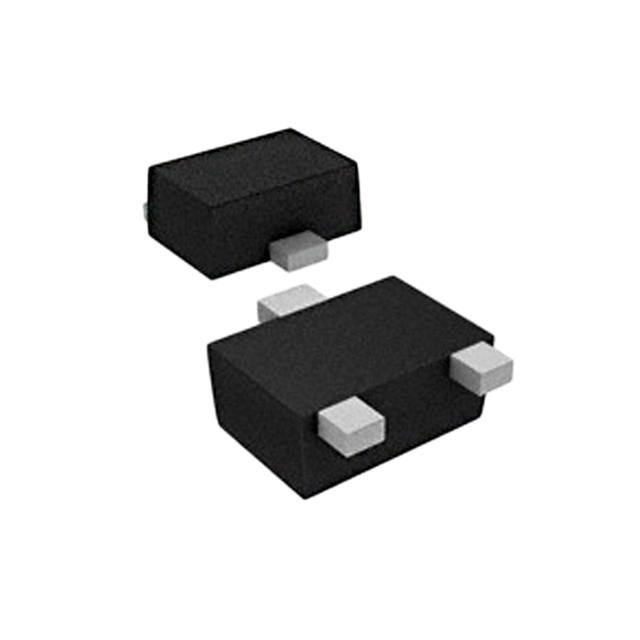

| Package / Case | SOT-723 |
|---|
| Supplier Device Package | VESM |
|---|
| Online Catalog |
P-Channel Standard FETs
|
|---|
| Other Names | SSM3J15FVL3FDKR |
|---|
