| Part Number | STD100N3LF3 |
|---|
| Manufacturer | STMicroelectronics |
|---|
| Description | MOSFET N-CH 30V 80A DPAK |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Discrete Semiconductor Products |
|---|
| Series | STripFET? II |
|---|
| Family | FETs - Single |
|---|
| Other Related Documents |
STD100N3LF3 View All Specifications
|
|---|
| Product Training Modules |
Automotive Grade Transistors and Discretes
|
|---|
| Standard Package | 2,500 |
|---|
| Packaging | Tape & Reel (TR) |
|---|
| FET Type | MOSFET N-Channel, Metal Oxide |
|---|
| FET Feature | Standard |
|---|
| Drain to Source Voltage (Vdss) | 30V |
|---|
| Current - Continuous Drain (Id) @ 25°C | 80A (Tc) |
|---|
| Rds On (Max) @ Id, Vgs | 5.5 mOhm @ 40A, 10V |
|---|
| Vgs(th) (Max) @ Id | 2.5V @ 250μA |
|---|
| Gate Charge (Qg) @ Vgs | 27nC @ 5V |
|---|
| Input Capacitance (Ciss) @ Vds | 2060pF @ 25V |
|---|
| Power - Max | 110W |
|---|
| Mounting Type | Surface Mount |
|---|

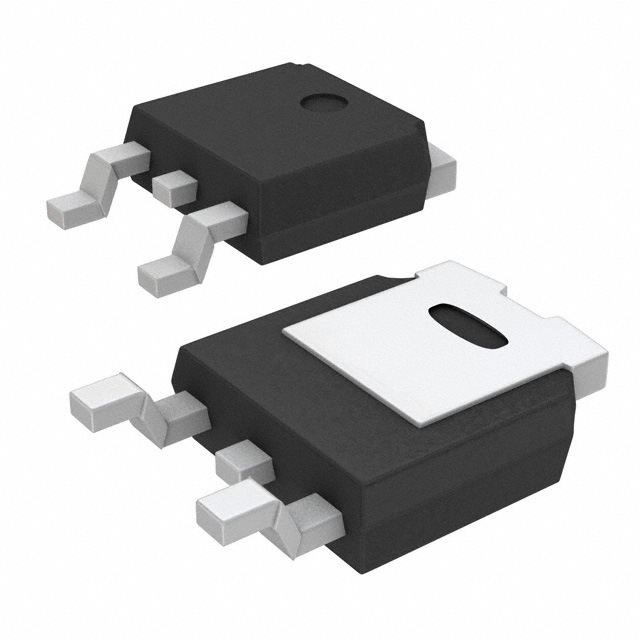

| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
|---|
| Supplier Device Package | D-Pak |
|---|
| Online Catalog | N-Channel Standard FETs |
|---|
| Other Names | 497-16197-2STD100N3LF3-ND |
|---|
