| Part Number | SIR172DP-T1-GE3 |
|---|
| Manufacturer | Vishay Siliconix |
|---|
| Description | MOSFET N-CH 30V 20A PPAK SO-8 |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Discrete Semiconductor Products |
|---|
| Series | TrenchFET? |
|---|
| Family | FETs - Single |
|---|
| Standard Package | 1 |
|---|
| Packaging | Cut Tape (CT) |
|---|
| FET Type | MOSFET N-Channel, Metal Oxide |
|---|
| FET Feature | Standard |
|---|
| Drain to Source Voltage (Vdss) | 30V |
|---|
| Current - Continuous Drain (Id) @ 25°C | 20A (Tc) |
|---|
| Rds On (Max) @ Id, Vgs | 8.9 mOhm @ 16.1A, 10V |
|---|
| Vgs(th) (Max) @ Id | 2.5V @ 250μA |
|---|
| Gate Charge (Qg) @ Vgs | 30nC @ 10V |
|---|
| Input Capacitance (Ciss) @ Vds | 997pF @ 15V |
|---|
| Power - Max | 29.8W |
|---|
| Operating Temperature | -55°C ~ 150°C (TJ) |
|---|
| Mounting Type | Surface Mount |
|---|

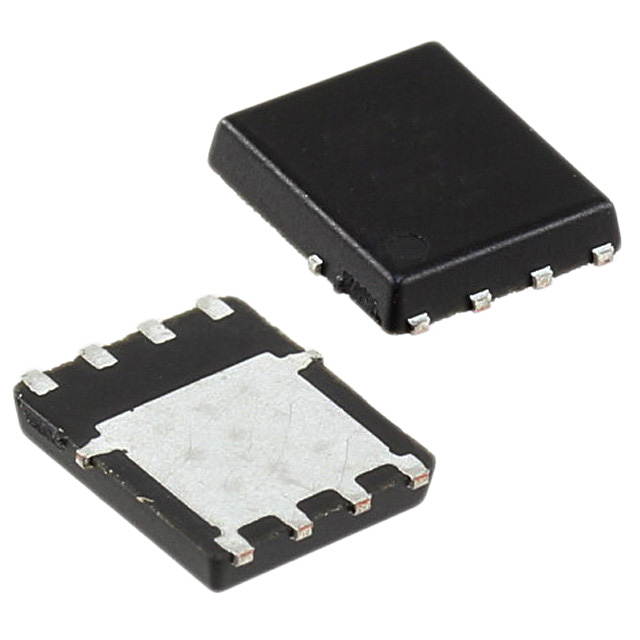

| Package / Case | PowerPAK? SO-8 |
|---|
| Supplier Device Package | PowerPAK? SO-8 |
|---|
| Online Catalog |
N-Channel Standard FETs
|
|---|
| Other Names | SIR172DP-T1-GE3CT |
|---|
