| Part Number | NTTFS3A08PZTAG |
|---|
| Manufacturer | ON Semiconductor |
|---|
| Description | MOSFET P-CH 20V 14A U8FL |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Discrete Semiconductor Products |
|---|
| Series | - |
|---|
| Family | FETs - Single |
|---|
| Standard Package | 1 |
|---|
| Packaging | Digi-Reel? |
|---|
| FET Type | MOSFET P-Channel, Metal Oxide |
|---|
| FET Feature | Standard |
|---|
| Drain to Source Voltage (Vdss) | 20V |
|---|
| Current - Continuous Drain (Id) @ 25°C | 9A (Ta) |
|---|
| Rds On (Max) @ Id, Vgs | 6.7 mOhm @ 12A, 4.5V |
|---|
| Vgs(th) (Max) @ Id | 1V @ 250μA |
|---|
| Gate Charge (Qg) @ Vgs | 56nC @ 4.5V |
|---|
| Input Capacitance (Ciss) @ Vds | 5000pF @ 10V |
|---|
| Power - Max | 840mW |
|---|
| Operating Temperature | -55°C ~ 150°C (TJ) |
|---|
| Mounting Type | Surface Mount |
|---|

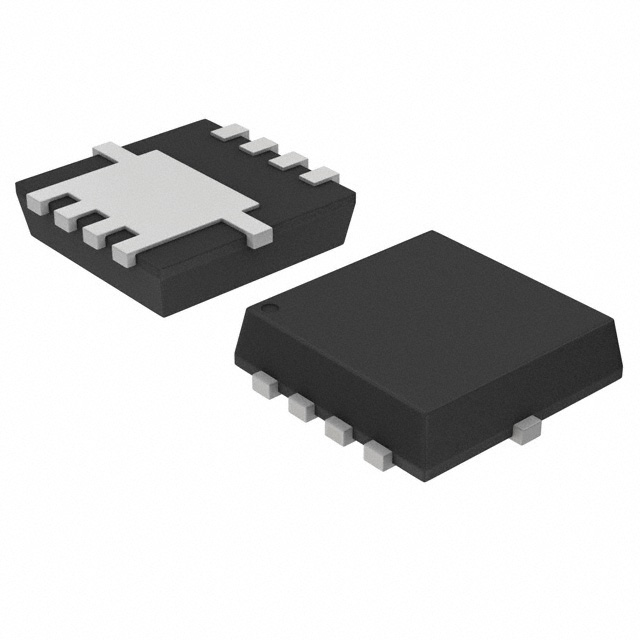

| Package / Case | 8-PowerWDFN |
|---|
| Supplier Device Package | 8-WDFN (3.3x3.3) |
|---|
| Online Catalog |
P-Channel Standard FETs
|
|---|
| Other Names | NTTFS3A08PZTAGOSDKR |
|---|
