| Part Number | NTMFS4983NFT1G |
|---|
| Manufacturer | ON Semiconductor |
|---|
| Description | MOSFET N-CH 30V 160A SO8FL |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Discrete Semiconductor Products |
|---|
| Series | - |
|---|
| Family | FETs - Single |
|---|
| Standard Package | 1 |
|---|
| Packaging | Cut Tape (CT) |
|---|
| FET Type | MOSFET N-Channel, Metal Oxide |
|---|
| FET Feature | Standard |
|---|
| Drain to Source Voltage (Vdss) | 30V |
|---|
| Current - Continuous Drain (Id) @ 25°C | 22A (Ta), 106A (Tc) |
|---|
| Rds On (Max) @ Id, Vgs | 2.1 mOhm @ 30A, 10V |
|---|
| Vgs(th) (Max) @ Id | 2.3V @ 1mA |
|---|
| Gate Charge (Qg) @ Vgs | 47.9nC @ 10V |
|---|
| Input Capacitance (Ciss) @ Vds | 3250pF @ 15V |
|---|
| Power - Max | 1.7W |
|---|
| Operating Temperature | -55°C ~ 150°C (TJ) |
|---|
| Mounting Type | Surface Mount |
|---|

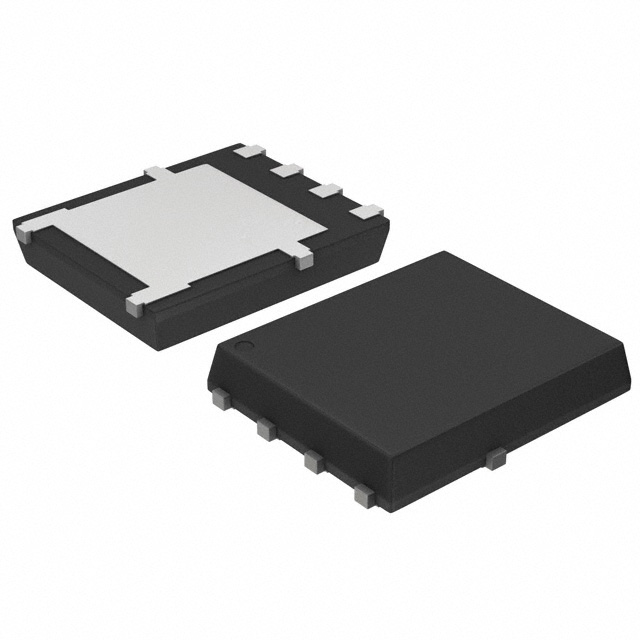

| Package / Case | 8-PowerTDFN, 5 Leads |
|---|
| Supplier Device Package | 5-DFN, 8-SO Flat Lead (5x6) |
|---|
| Online Catalog |
N-Channel Standard FETs
|
|---|
| Other Names | NTMFS4983NFT1GOSCT |
|---|
