| Part Number | 5LN01M-TL-H |
|---|
| Manufacturer | ON Semiconductor |
|---|
| Description | MOSFET N-CH 50V 100MA SC59 |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Discrete Semiconductor Products |
|---|
| Series | - |
|---|
| Family | FETs - Single |
|---|
| PCN Design/Specification |
Raw Material Change 22/Jul/2015
|
|---|
| Standard Package | 3,000 |
|---|
| Packaging | Tape & Reel (TR) |
|---|
| FET Type | MOSFET N-Channel, Metal Oxide |
|---|
| FET Feature | Logic Level Gate, 1.5V Drive |
|---|
| Drain to Source Voltage (Vdss) | 50V |
|---|
| Current - Continuous Drain (Id) @ 25°C | 100mA (Ta) |
|---|
| Rds On (Max) @ Id, Vgs | 7.8 Ohm @ 50mA, 4V |
|---|
| Vgs(th) (Max) @ Id | - |
|---|
| Gate Charge (Qg) @ Vgs | 1.57nC @ 10V |
|---|
| Input Capacitance (Ciss) @ Vds | 6.6pF @ 10V |
|---|
| Power - Max | 150mW |
|---|
| Mounting Type | Surface Mount |
|---|

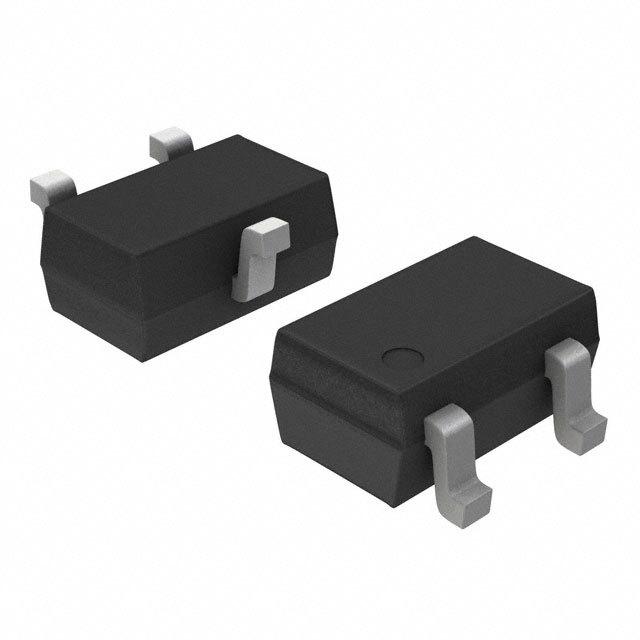

| Package / Case | TO-236-3, SC-59, SOT-23-3 |
|---|
| Supplier Device Package | 3-MCP |
|---|
| Other Names | 5LN01M-TL-H-ND5LN01M-TL-HOSTR |
|---|
