| Part Number | 3LN01SS-TL-E |
|---|
| Manufacturer | ON Semiconductor |
|---|
| Description | MOSFET N-CH 30V 0.15A SSFP |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Discrete Semiconductor Products |
|---|
| Series | - |
|---|
| Family | FETs - Single |
|---|
| Standard Package | 1 |
|---|
| Packaging | Cut Tape (CT) |
|---|
| FET Type | MOSFET N-Channel, Metal Oxide |
|---|
| FET Feature | Logic Level Gate, 2.5V Drive |
|---|
| Drain to Source Voltage (Vdss) | 30V |
|---|
| Current - Continuous Drain (Id) @ 25°C | 150mA (Ta) |
|---|
| Rds On (Max) @ Id, Vgs | 3.7 Ohm @ 80mA, 4V |
|---|
| Vgs(th) (Max) @ Id | - |
|---|
| Gate Charge (Qg) @ Vgs | 1.58nC @ 10V |
|---|
| Input Capacitance (Ciss) @ Vds | 7pF @ 10V |
|---|
| Power - Max | 150mW |
|---|
| Operating Temperature | 150°C (TJ) |
|---|
| Mounting Type | Surface Mount |
|---|

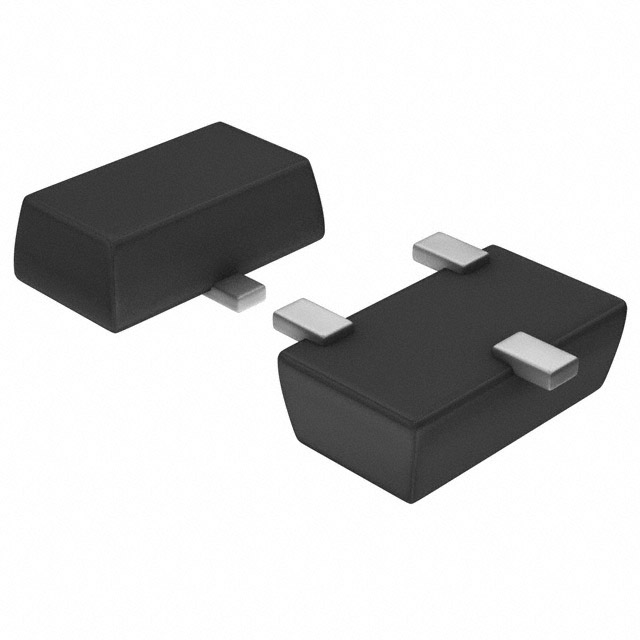

| Package / Case | SC-81 |
|---|
| Supplier Device Package | SC-81 (SSFP) |
|---|
| Online Catalog |
N-Channel Logic Level Gate FETs
|
|---|
| Other Names | 3LN01SS-TL-EOSCT |
|---|
