| Part Number | NTMFS4C08NT1G |
|---|
| Manufacturer | ON Semiconductor |
|---|
| Description | MOSFET N-CH 30V 52A SO8FL |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Discrete Semiconductor Products |
|---|
| Series | - |
|---|
| Family | FETs - Single |
|---|
| PCN Design/Specification |
Enlarged Clip Implementation 15/Jan/2015
|
|---|
| PCN Assembly/Origin |
Wafer Fab Site Addition 17/Mar/2015
Wafer Fab Site Addition 18/Jun/2015
|
|---|
| Standard Package | 1,500 |
|---|
| Packaging | Tape & Reel (TR) |
|---|
| FET Type | MOSFET N-Channel, Metal Oxide |
|---|
| FET Feature | Standard |
|---|
| Drain to Source Voltage (Vdss) | 30V |
|---|
| Current - Continuous Drain (Id) @ 25°C | 9A (Ta), 52A (Tc) |
|---|
| Rds On (Max) @ Id, Vgs | 5.8 mOhm @ 18A, 10V |
|---|
| Vgs(th) (Max) @ Id | 2.1V @ 250μA |
|---|
| Gate Charge (Qg) @ Vgs | 18.2nC @ 10V |
|---|
| Input Capacitance (Ciss) @ Vds | 1113pF @ 15V |
|---|
| Power - Max | 760mW |
|---|
| Mounting Type | Surface Mount |
|---|

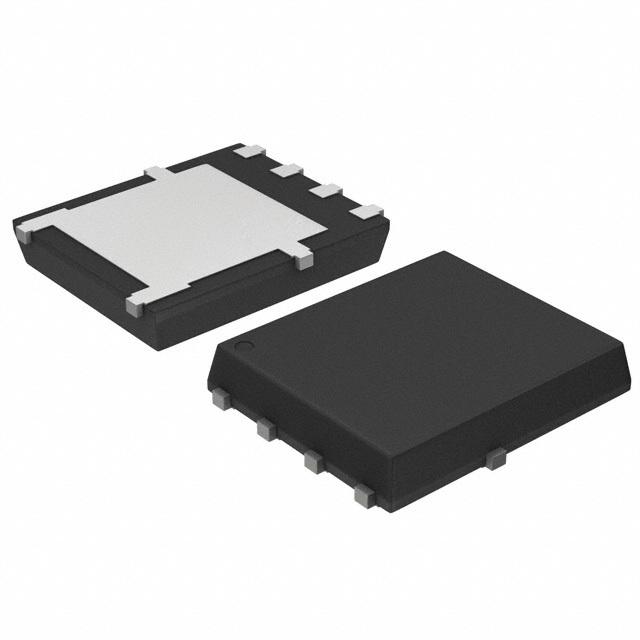

| Package / Case | 8-PowerTDFN, 5 Leads |
|---|
| Supplier Device Package | 5-DFN, 8-SO Flat Lead (5x6) |
|---|
| Other Names | NTMFS4C08NT1G-NDNTMFS4C08NT1GOSTR |
|---|
