| Part Number | MCH3374-TL-W |
|---|
| Manufacturer | ON Semiconductor |
|---|
| Description | MOSFET P-CH 12V 3A MCPH3 |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Discrete Semiconductor Products |
|---|
| Series | - |
|---|
| Family | FETs - Single |
|---|
| Standard Package | 3,000 |
|---|
| Packaging | Tape & Reel (TR) |
|---|
| FET Type | MOSFET P-Channel, Metal Oxide |
|---|
| FET Feature | Logic Level Gate, 1.8V Drive |
|---|
| Drain to Source Voltage (Vdss) | 12V |
|---|
| Current - Continuous Drain (Id) @ 25°C | 3A (Ta) |
|---|
| Rds On (Max) @ Id, Vgs | 70 mOhm @ 1.5A, 4.5V |
|---|
| Vgs(th) (Max) @ Id | 1.4V @ 1mA |
|---|
| Gate Charge (Qg) @ Vgs | 5.6nC @ 4.5V |
|---|
| Input Capacitance (Ciss) @ Vds | 405pF @ 6V |
|---|
| Power - Max | 1W |
|---|
| Operating Temperature | 150°C (TJ) |
|---|
| Mounting Type | Surface Mount |
|---|

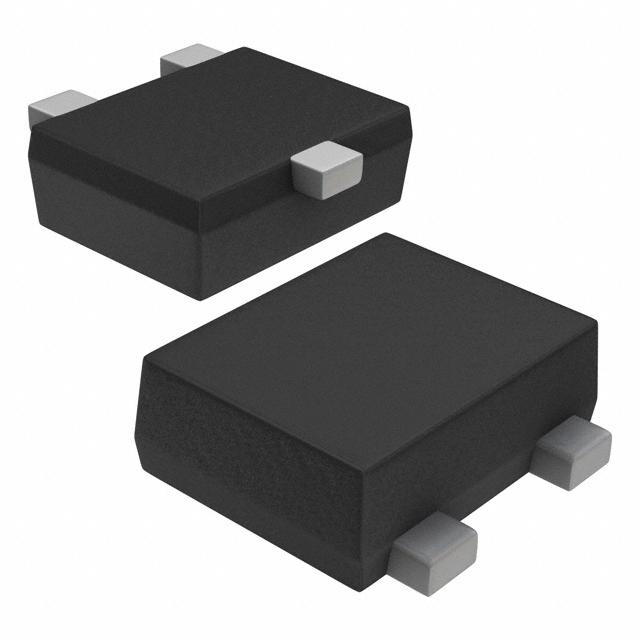

| Package / Case | SOT-23-3 Flat Leads |
|---|
| Supplier Device Package | SC-70 / MCPH3 |
|---|
| Online Catalog |
P-Channel Logic Level Gate FETs
|
|---|
| Other Names | MCH3374-TL-WOSTR |
|---|
