| Part Number | BSC150N03LD G |
|---|
| Manufacturer | Infineon Technologies |
|---|
| Description | MOSFET 2N-CH 30V 8A 8TDSON |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Discrete Semiconductor Products |
|---|
| Series | OptiMOS? |
|---|
| Family | FETs - Arrays |
|---|
| Standard Package | 1 |
|---|
| Packaging | Digi-Reel? |
|---|
| FET Type | 2 N-Channel (Dual) |
|---|
| FET Feature | Logic Level Gate |
|---|
| Drain to Source Voltage (Vdss) | 30V |
|---|
| Current - Continuous Drain (Id) @ 25°C | 8A |
|---|
| Rds On (Max) @ Id, Vgs | 15 mOhm @ 20A, 10V |
|---|
| Vgs(th) (Max) @ Id | 2.2V @ 250μA |
|---|
| Gate Charge (Qg) @ Vgs | 13.2nC @ 10V |
|---|
| Input Capacitance (Ciss) @ Vds | 1100pF @ 15V |
|---|
| Power - Max | 26W |
|---|
| Mounting Type | Surface Mount |
|---|

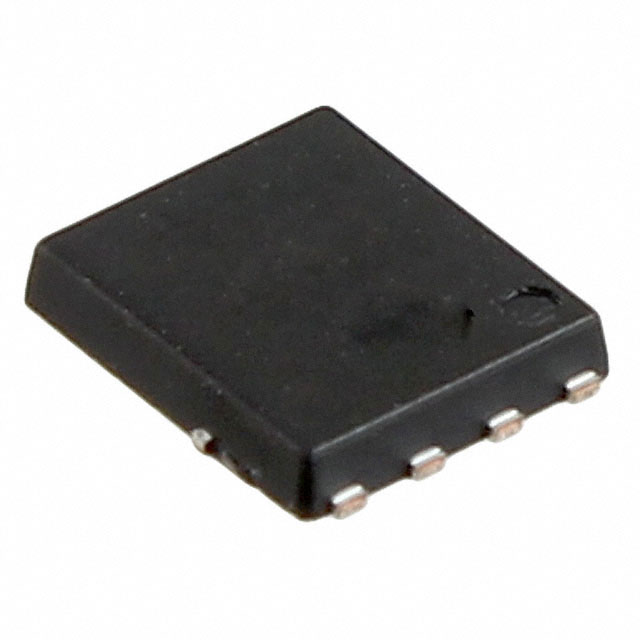

| Package / Case | 8-PowerVDFN |
|---|
| Supplier Device Package | PG-TDSON-8 (5.15x6.15) |
|---|
| Online Catalog | N-Channel Logic Level Gate FETs |
|---|
| Other Names | BSC150N03LD GDKR |
|---|
