| Part Number | AO4813 |
|---|
| Manufacturer | Alpha & Omega Semiconductor Inc. |
|---|
| Description | MOSFET 2P-CH 30V 7.1A 8SOIC |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Discrete Semiconductor Products |
|---|
| Series | - |
|---|
| Family | FETs - Arrays |
|---|
| Other Related Documents |
AOS Green Policy
|
|---|
| Other Drawings |
AO4xxx Series 8-SOIC Top
AO4xxx Series 8-SOIC End
AO4xxx Series 8-SOIC Side
|
|---|
| Standard Package | 1 |
|---|
| Packaging | Digi-Reel? |
|---|
| FET Type | 2 P-Channel (Dual) |
|---|
| FET Feature | Logic Level Gate |
|---|
| Drain to Source Voltage (Vdss) | 30V |
|---|
| Current - Continuous Drain (Id) @ 25°C | 7.1A |
|---|
| Rds On (Max) @ Id, Vgs | 25 mOhm @ 7.1A, 10V |
|---|
| Vgs(th) (Max) @ Id | 2.5V @ 250μA |
|---|
| Gate Charge (Qg) @ Vgs | 19nC @ 10V |
|---|
| Input Capacitance (Ciss) @ Vds | 1250pF @ 15V |
|---|
| Power - Max | 2W |
|---|
| Mounting Type | Surface Mount |
|---|

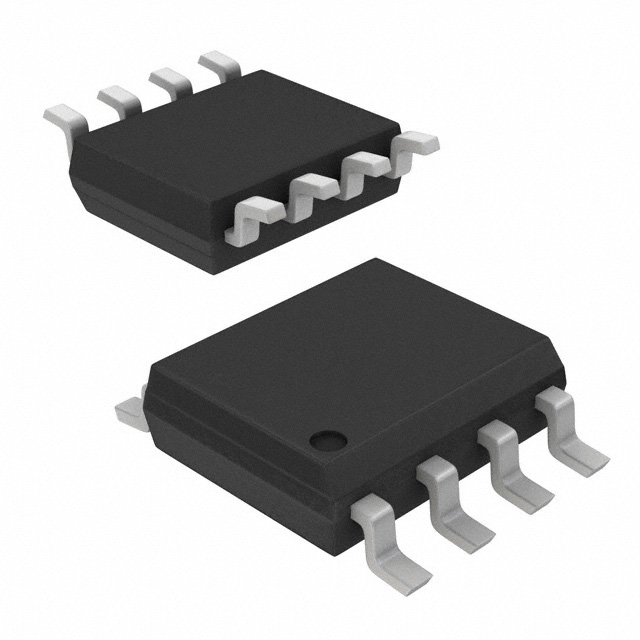

| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
|---|
| Supplier Device Package | 8-SOIC |
|---|
| Online Catalog | P-Channel Logic Level Gate FETs |
|---|
| Other Names | 785-1058-6 |
|---|
