| Part Number | DMN2004VK-7 |
|---|
| Manufacturer | Diodes Incorporated |
|---|
| Description | MOSFET 2N-CH 20V 0.54A SOT-563 |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Discrete Semiconductor Products |
|---|
| Series | - |
|---|
| Family | FETs - Arrays |
|---|
| Other Drawings |

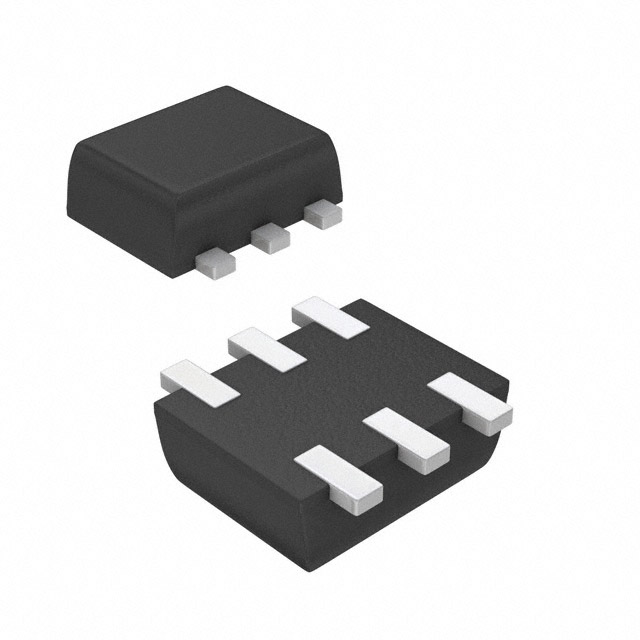

SOT-563 Package Top
|
|---|
| PCN Design/Specification |
Bond Wire 11/Nov/2011
|
|---|
| Standard Package | 3,000 |
|---|
| Packaging | Tape & Reel (TR) |
|---|
| FET Type | 2 N-Channel (Dual) |
|---|
| FET Feature | Logic Level Gate |
|---|
| Drain to Source Voltage (Vdss) | 20V |
|---|
| Current - Continuous Drain (Id) @ 25°C | 540mA |
|---|
| Rds On (Max) @ Id, Vgs | 550 mOhm @ 540mA, 4.5V |
|---|
| Vgs(th) (Max) @ Id | 1V @ 250μA |
|---|
| Gate Charge (Qg) @ Vgs | - |
|---|
| Input Capacitance (Ciss) @ Vds | 150pF @ 16V |
|---|
| Power - Max | 250mW |
|---|
| Mounting Type | Surface Mount |
|---|
| Package / Case | SOT-563, SOT-666 |
|---|
| Supplier Device Package | SOT-563 |
|---|
| Online Catalog | N-Channel Logic Level Gate FETs |
|---|
| Other Names | DMN2004VK7DMN2004VKDITR |
|---|
