| Part Number | NTHD3100CT1G |
|---|---|
| Manufacturer | ON Semiconductor |
| Description | MOSFET N/P-CH 20V CHIPFET |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3,487 |
| Datasheet | NTHD3100CT1G |
| Minimum Order: $100 USD | |
| Request for Quote to us through Email or Phone call on quanitities greater than those displayed or for price adjustment. | |
NTHD3100CT1G
-
- USD 0.00
Product Details
| Part Number | NTHD3100CT1G |
|---|---|
| Manufacturer | ON Semiconductor |
| Description | MOSFET N/P-CH 20V CHIPFET |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Category | Discrete Semiconductor Products |
| Series | - |
| Family | FETs - Arrays |
| Standard Package | 1 |
| Packaging | Digi-Reel? |
| FET Type | N and P-Channel |
| FET Feature | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 20V |
| Current - Continuous Drain (Id) @ 25°C | 2.9A, 3.2A |
| Rds On (Max) @ Id, Vgs | 80 mOhm @ 2.9A, 4.5V |
| Vgs(th) (Max) @ Id | 1.2V @ 250μA |
| Gate Charge (Qg) @ Vgs | 2.3nC @ 4.5V |
| Input Capacitance (Ciss) @ Vds | 165pF @ 10V |
| Power - Max | 1.1W |
| Mounting Type | Surface Mount |

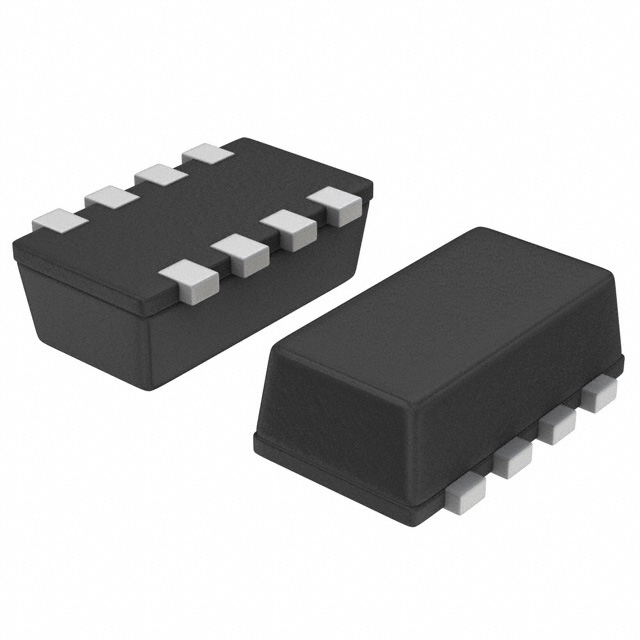

| Package / Case | 8-SMD, Flat Lead |
| Supplier Device Package | ChipFET? |
| Online Catalog | N and P-Channel Logic Level Gate FETs |
| Other Names | NTHD3100CT1GOSDKR |
