| Part Number | FDMA3023PZ |
|---|
| Manufacturer | Fairchild Semiconductor |
|---|
| Description | MOSFET 2P-CH 30V 2.9A MICROFET6 |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Discrete Semiconductor Products |
|---|
| Series | PowerTrench? |
|---|
| Family | FETs - Arrays |
|---|
| PCN Design/Specification |
Marking Content 19/Nov/2013
|
|---|
| Standard Package | 3,000 |
|---|
| Packaging | Tape & Reel (TR) |
|---|
| FET Type | 2 P-Channel (Dual) |
|---|
| FET Feature | Logic Level Gate |
|---|
| Drain to Source Voltage (Vdss) | 30V |
|---|
| Current - Continuous Drain (Id) @ 25°C | 2.9A |
|---|
| Rds On (Max) @ Id, Vgs | 90 mOhm @ 2.9A, 4.5V |
|---|
| Vgs(th) (Max) @ Id | 1V @ 250μA |
|---|
| Gate Charge (Qg) @ Vgs | 11nC @ 4.5V |
|---|
| Input Capacitance (Ciss) @ Vds | 530pF @ 15V |
|---|
| Power - Max | 700mW |
|---|
| Mounting Type | Surface Mount |
|---|

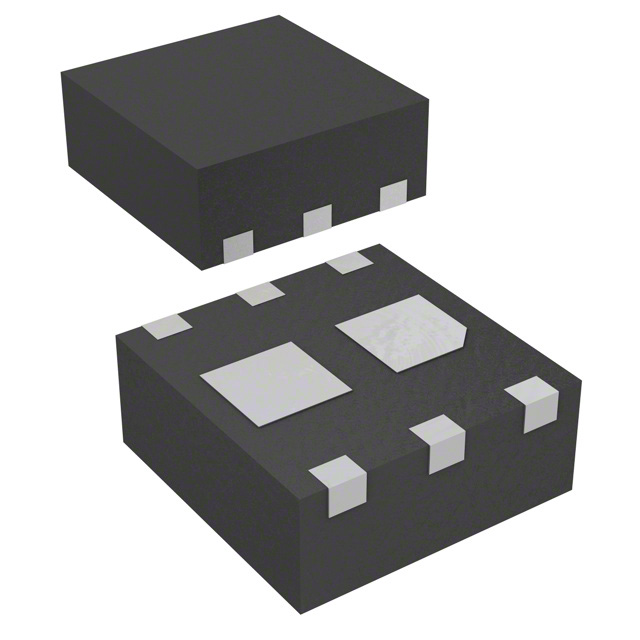

| Package / Case | 6-WDFN Exposed Pad |
|---|
| Supplier Device Package | 6-MicroFET (2x2) |
|---|
| Online Catalog | P-Channel Logic Level Gate FETs |
|---|
| Other Names | FDMA3023PZTR |
|---|
