| Part Number | DMN3024LSD-13 |
|---|
| Manufacturer | Diodes Incorporated |
|---|
| Description | MOSFET 2N-CH 30V 6.8A 8SO |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Discrete Semiconductor Products |
|---|
| Series | - |
|---|
| Family | FETs - Arrays |
|---|
| PCN Design/Specification |
Wafer Site/Bond Wire 8/Apr/2013
|
|---|
| Standard Package | 1 |
|---|
| Packaging | Digi-Reel? |
|---|
| FET Type | 2 N-Channel (Dual) |
|---|
| FET Feature | Logic Level Gate |
|---|
| Drain to Source Voltage (Vdss) | 30V |
|---|
| Current - Continuous Drain (Id) @ 25°C | 6.8A |
|---|
| Rds On (Max) @ Id, Vgs | 24 mOhm @ 7A, 10V |
|---|
| Vgs(th) (Max) @ Id | 3V @ 250μA |
|---|
| Gate Charge (Qg) @ Vgs | 12.9nC @ 10V |
|---|
| Input Capacitance (Ciss) @ Vds | 608pF @ 15V |
|---|
| Power - Max | 1.8W |
|---|
| Mounting Type | Surface Mount |
|---|

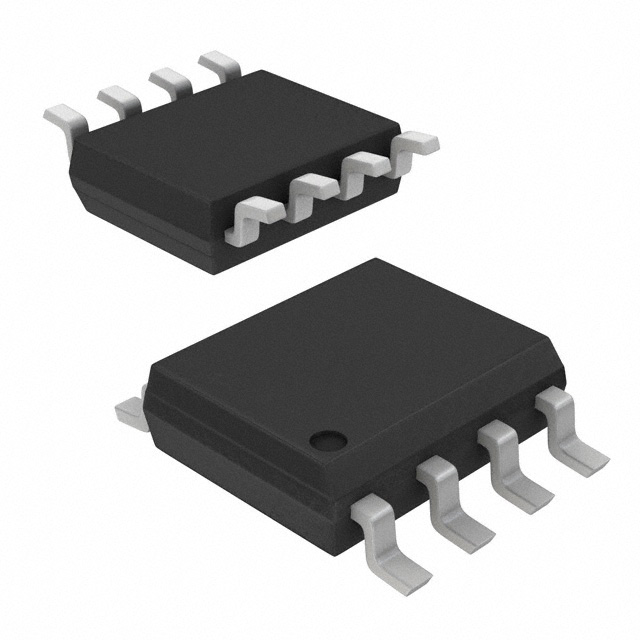

| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
|---|
| Supplier Device Package | 8-SO |
|---|
| Online Catalog | N-Channel Logic Level Gate FETs |
|---|
| Other Names | DMN3024LSD-13DIDKR |
|---|
