| Part Number | ECH8651R-TL-H |
|---|---|
| Manufacturer | ON Semiconductor |
| Description | MOSFET 2N-CH 24V 10A ECH8 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 15,000 84,000 - Factory Stock |
| Datasheet | ECH8651R-TL-H |
| Minimum Order: $100 USD | |
| Request for Quote to us through Email or Phone call on quanitities greater than those displayed or for price adjustment. | |
ECH8651R-TL-H
-
- USD 0.00
Product Details
| Part Number | ECH8651R-TL-H |
|---|---|
| Manufacturer | ON Semiconductor |
| Description | MOSFET 2N-CH 24V 10A ECH8 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Category | Discrete Semiconductor Products |
| Series | - |
| Family | FETs - Arrays |
| Standard Package | 1 |
| Packaging | Digi-Reel? |
| FET Type | 2 N-Channel (Dual) |
| FET Feature | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 24V |
| Current - Continuous Drain (Id) @ 25°C | 10A |
| Rds On (Max) @ Id, Vgs | 14 mOhm @ 5A, 4.5V |
| Vgs(th) (Max) @ Id | - |
| Gate Charge (Qg) @ Vgs | 24nC @ 10V |
| Input Capacitance (Ciss) @ Vds | - |
| Power - Max | 1.5W |
| Operating Temperature | * |
| Mounting Type | Surface Mount |

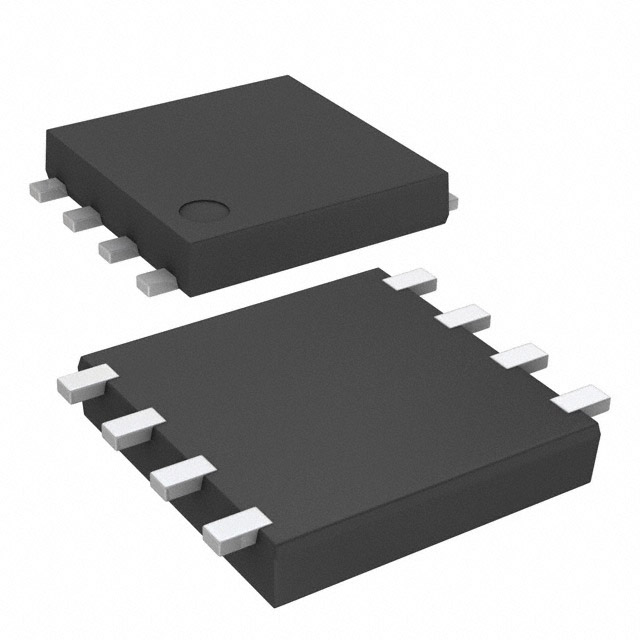

| Package / Case | 8-SMD, Flat Lead |
| Supplier Device Package | 8-ECH |
| Online Catalog | N-Channel Standard FETs |
| Other Names | 869-1158-6 |
