| Part Number | PMEG4005AEV,115 |
|---|
| Manufacturer | NXP Semiconductors |
|---|
| Description | DIODE SCHOTTKY 40V 500MA SOT666 |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Discrete Semiconductor Products |
|---|
| Series | - |
|---|
| Family | Diodes, Rectifiers - Single |
|---|
| PCN Design/Specification |
Resin Hardener 02/Jul/2013
|
|---|
| PCN Packaging |
Lighter Reels 02/Jan/2014
|
|---|
| EDA / CAD Models |
Download from Accelerated Designs |
|---|
| Standard Package | 1 |
|---|
| Packaging | Digi-Reel? |
|---|
| Diode Type | Schottky |
|---|
| Voltage - DC Reverse (Vr) (Max) | 40V |
|---|
| Current - Average Rectified (Io) | 500mA (DC) |
|---|
| Voltage - Forward (Vf) (Max) @ If | 470mV @ 500mA |
|---|
| Speed | Fast Recovery = 200mA (Io) |
|---|
| Reverse Recovery Time (trr) | - |
|---|
| Current - Reverse Leakage @ Vr | 100μA @ 40V |
|---|
| Capacitance @ Vr, F | 50pF @ 1V, 1MHz |
|---|
| Mounting Type | Surface Mount |
|---|

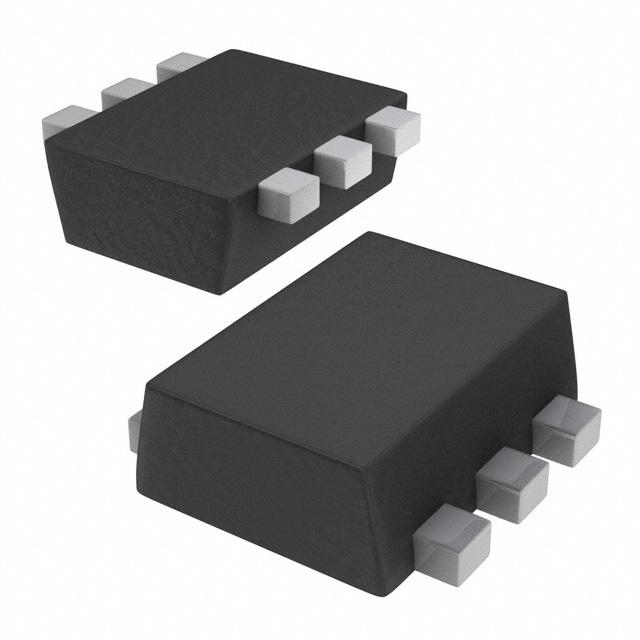

| Package / Case | SOT-563, SOT-666 |
|---|
| Supplier Device Package | SOT-666 |
|---|
| Operating Temperature - Junction | -65°C ~ 150°C |
|---|
| Online Catalog | Schottky Diode |
|---|
| Other Names | 568-7403-6 |
|---|
