| Part Number | SBR1045SP5-13 |
|---|
| Manufacturer | Diodes Incorporated |
|---|
| Description | DIODE SBR 45V 10A POWERDI5 |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Discrete Semiconductor Products |
|---|
| Series | SBR? |
|---|
| Family | Diodes, Rectifiers - Single |
|---|
| Product Training Modules |
Super Barrier Rectifier (SBR®)
|
|---|
| PCN Design/Specification |
Mold Compound/Solder Update 09/Jan/2015
Mold Compound Rev 01 05/May/2015
|
|---|
| Standard Package | 1 |
|---|
| Packaging | Digi-Reel? |
|---|
| Diode Type | Super Barrier |
|---|
| Voltage - DC Reverse (Vr) (Max) | 45V |
|---|
| Current - Average Rectified (Io) | 10A |
|---|
| Voltage - Forward (Vf) (Max) @ If | 550mV @ 10A |
|---|
| Speed | Fast Recovery = 200mA (Io) |
|---|
| Reverse Recovery Time (trr) | - |
|---|
| Current - Reverse Leakage @ Vr | 450μA @ 45V |
|---|
| Capacitance @ Vr, F | - |
|---|
| Mounting Type | Surface Mount |
|---|

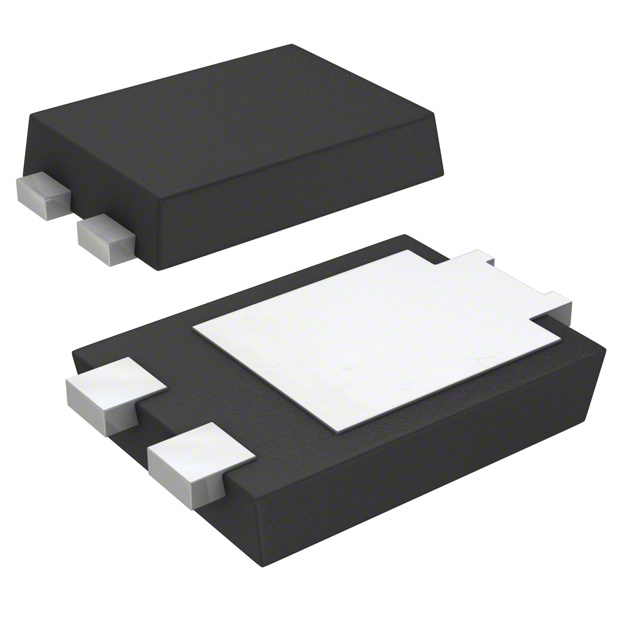

| Package / Case | PowerDI? 5 |
|---|
| Supplier Device Package | PowerDI? 5 |
|---|
| Operating Temperature - Junction | -65°C ~ 150°C |
|---|
| Online Catalog | Super Barrier Diode |
|---|
| Other Names | SBR1045SP5-13DIDKR |
|---|
