| Part Number | STPS0530Z |
|---|
| Manufacturer | STMicroelectronics |
|---|
| Description | DIODE SCHOTTKY 30V 500MA SOD123 |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Discrete Semiconductor Products |
|---|
| Series | - |
|---|
| Family | Diodes, Rectifiers - Single |
|---|
| Other Related Documents |
STPS0530Z View All Specifications
|
|---|
| Standard Package | 3,000 |
|---|
| Packaging | Tape & Reel (TR) |
|---|
| Diode Type | Schottky |
|---|
| Voltage - DC Reverse (Vr) (Max) | 30V |
|---|
| Current - Average Rectified (Io) | 500mA |
|---|
| Voltage - Forward (Vf) (Max) @ If | 430mV @ 500mA |
|---|
| Speed | Fast Recovery = 200mA (Io) |
|---|
| Reverse Recovery Time (trr) | - |
|---|
| Current - Reverse Leakage @ Vr | 130μA @ 30V |
|---|
| Capacitance @ Vr, F | - |
|---|
| Mounting Type | Surface Mount |
|---|

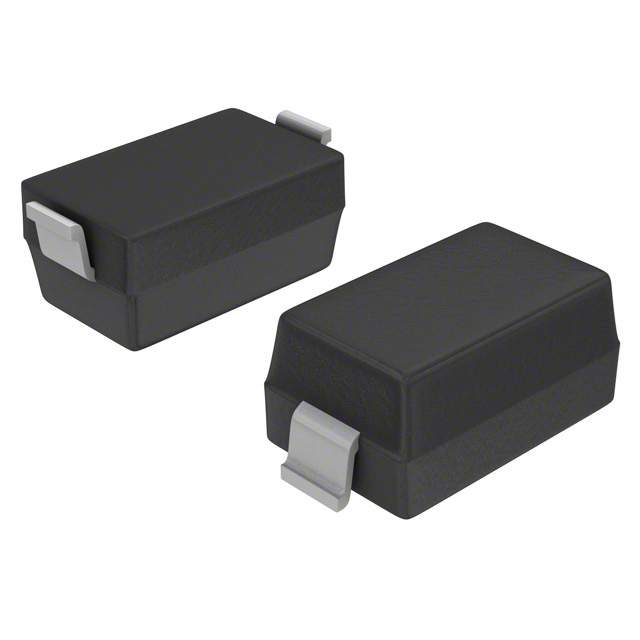

| Package / Case | SOD-123 |
|---|
| Supplier Device Package | SOD-123 |
|---|
| Operating Temperature - Junction | 150°C (Max) |
|---|
| Online Catalog | Schottky Diode |
|---|
| Other Names | 497-16204-2STPS0530Z-ND |
|---|
