| Part Number | PMEG2010EJ,115 |
|---|
| Manufacturer | NXP Semiconductors |
|---|

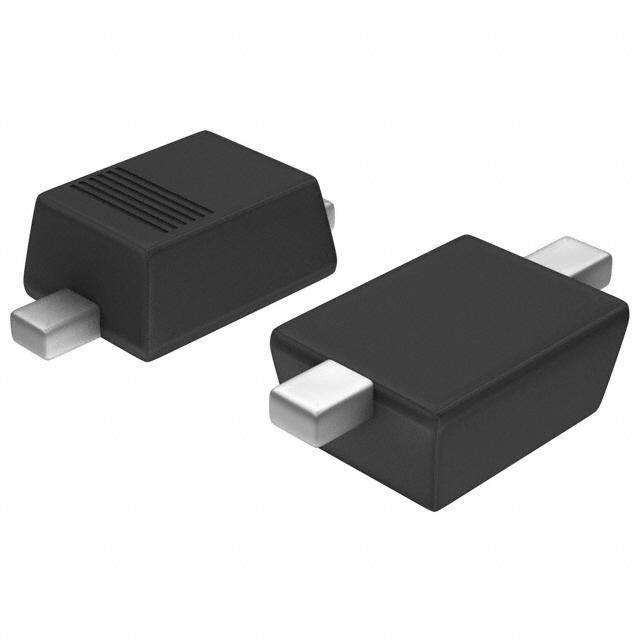

| Description | DIODE SCHOTTKY 20V 1A SOD323F |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Discrete Semiconductor Products |
|---|
| Series | - |
|---|
| Family | Diodes, Rectifiers - Single |
|---|
| PCN Design/Specification |
Resin Hardener 02/Jul/2013
Bond Wiring Chg 06/Sep/2015
Bonding Wire Revision 28/Sep/2015
SOD323F Bond Wire Au to Cu & 2nd Source Mold Comp 2/Nov/2015
|
|---|
| PCN Packaging |
Lighter Reels 02/Jan/2014
|
|---|
| EDA / CAD Models |
Download from Accelerated Designs |
|---|
| Standard Package | 1 |
|---|
| Packaging | Cut Tape (CT) |
|---|
| Diode Type | Schottky |
|---|
| Voltage - DC Reverse (Vr) (Max) | 20V |
|---|
| Current - Average Rectified (Io) | 1A (DC) |
|---|
| Voltage - Forward (Vf) (Max) @ If | 500mV @ 1A |
|---|
| Speed | Fast Recovery = 200mA (Io) |
|---|
| Reverse Recovery Time (trr) | - |
|---|
| Current - Reverse Leakage @ Vr | 200μA @ 20V |
|---|
| Capacitance @ Vr, F | 80pF @ 1V, 1MHz |
|---|
| Mounting Type | Surface Mount |
|---|
| Package / Case | SC-90, SOD-323F |
|---|
| Supplier Device Package | SOD-323F |
|---|
| Operating Temperature - Junction | 150°C (Max) |
|---|
| Online Catalog | Schottky Diode |
|---|
| Kits | NXPMEGA1-KIT-ND - KIT SCHOTTKY DIODE 17 VALUES |
|---|
| Other Names | 568-4115-1 |
|---|
