| Part Number | 1PS79SB10,115 |
|---|
| Manufacturer | NXP Semiconductors |
|---|
| Description | DIODE SCHOTTKY 30V 200MA SOD523 |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Discrete Semiconductor Products |
|---|
| Series | - |
|---|
| Family | Diodes, Rectifiers - Single |
|---|
| PCN Packaging |
Lighter Reels 02/Jan/2014
|
|---|
| EDA / CAD Models |
Download from Accelerated Designs |
|---|
| Standard Package | 1 |
|---|
| Packaging | Digi-Reel? |
|---|
| Diode Type | Schottky |
|---|
| Voltage - DC Reverse (Vr) (Max) | 30V |
|---|
| Current - Average Rectified (Io) | 200mA (DC) |
|---|
| Voltage - Forward (Vf) (Max) @ If | 800mV @ 100mA |
|---|
| Speed | Small Signal =< 200mA (Io), Any Speed |
|---|
| Reverse Recovery Time (trr) | - |
|---|
| Current - Reverse Leakage @ Vr | 2μA @ 25V |
|---|
| Capacitance @ Vr, F | 10pF @ 1V, 1MHz |
|---|
| Mounting Type | Surface Mount |
|---|

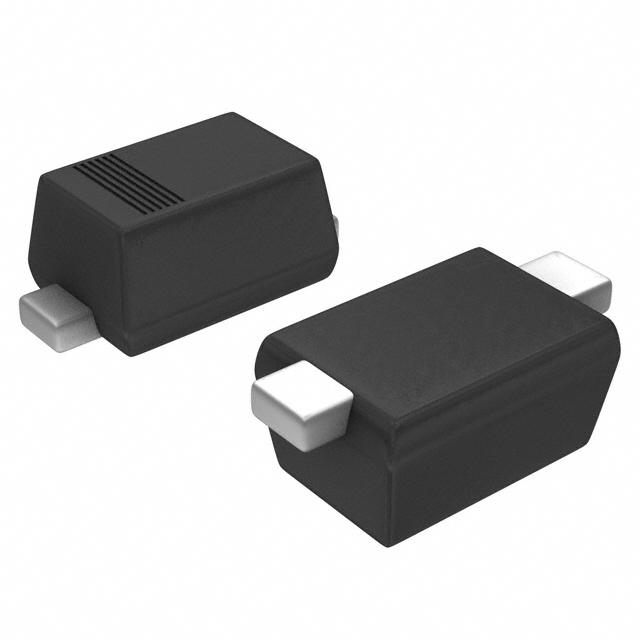

| Package / Case | SC-79, SOD-523 |
|---|
| Supplier Device Package | SOD-523 |
|---|
| Operating Temperature - Junction | 125°C (Max) |
|---|
| Online Catalog | Schottky Diode |
|---|
| Other Names | 568-5971-6 |
|---|
