| Part Number | BAS416,115 |
|---|
| Manufacturer | NXP Semiconductors |
|---|
| Description | DIODE GEN PURP 75V 200MA SOD323 |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Discrete Semiconductor Products |
|---|
| Series | - |
|---|
| Family | Diodes, Rectifiers - Single |
|---|
| PCN Design/Specification |
Resin Hardener 02/Jul/2013
Copper Bond Wire 26/Oct/2013
Copper Bond Wire 14/Dec/2013
|
|---|
| PCN Packaging |
Lighter Reels 02/Jan/2014
|
|---|
| Standard Package | 1 |
|---|
| Packaging | Cut Tape (CT) |
|---|
| Diode Type | Standard |
|---|
| Voltage - DC Reverse (Vr) (Max) | 75V |
|---|
| Current - Average Rectified (Io) | 200mA (DC) |
|---|
| Voltage - Forward (Vf) (Max) @ If | 1.25V @ 150mA |
|---|
| Speed | Small Signal =< 200mA (Io), Any Speed |
|---|
| Reverse Recovery Time (trr) | 3μs |
|---|
| Current - Reverse Leakage @ Vr | 5nA @ 75V |
|---|
| Capacitance @ Vr, F | 2pF @ 0V, 1MHz |
|---|
| Mounting Type | Surface Mount |
|---|

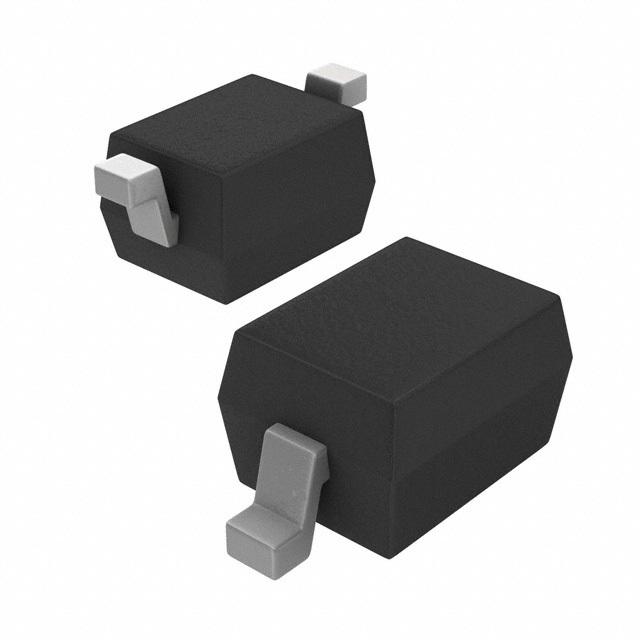

| Package / Case | SC-76, SOD-323 |
|---|
| Supplier Device Package | SOD-323 |
|---|
| Operating Temperature - Junction | 150°C (Max) |
|---|
| Online Catalog | Standard Diode |
|---|
| Other Names | 568-6007-1 |
|---|
