| Part Number | MMBD1503-TP |
|---|
| Manufacturer | Micro Commercial Co |
|---|
| Description | DIODE ARRAY GP 180V 200MA SOT23 |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Discrete Semiconductor Products |
|---|
| Series | - |
|---|
| Family | Diodes, Rectifiers - Arrays |
|---|
| Product Training Modules |
Diode Handling and Mounting
|
|---|
| Standard Package | 1 |
|---|
| Packaging | Cut Tape (CT) |
|---|
| Diode Configuration | 1 Pair Series Connection |
|---|
| Diode Type | Standard |
|---|
| Voltage - DC Reverse (Vr) (Max) | 180V |
|---|
| Current - Average Rectified (Io) (per Diode) | 200mA |
|---|
| Voltage - Forward (Vf) (Max) @ If | 1.3V @ 200mA |
|---|
| Speed | Small Signal =< 200mA (Io), Any Speed |
|---|
| Reverse Recovery Time (trr) | - |
|---|
| Current - Reverse Leakage @ Vr | 10nA @ 180V |
|---|
| Mounting Type | Surface Mount |
|---|

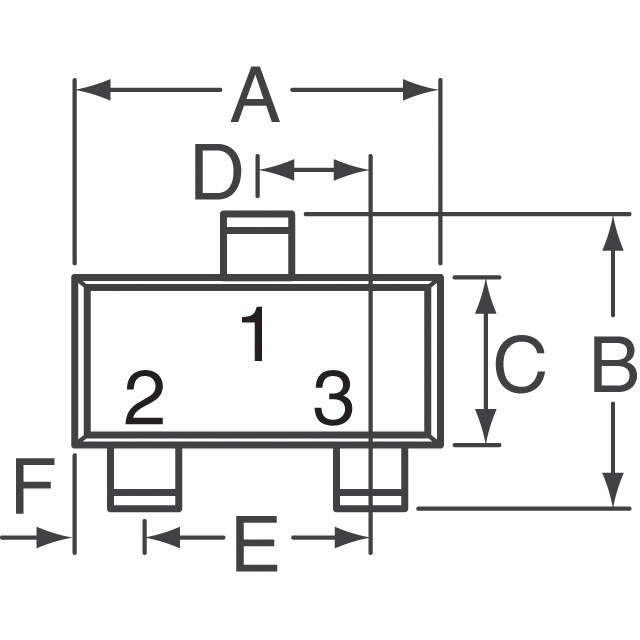

| Package / Case | TO-236-3, SC-59, SOT-23-3 |
|---|
| Supplier Device Package | SOT-23 |
|---|
| Online Catalog | Diode Array |
|---|
| Other Names | MMBD1503TPMSCT |
|---|
