| Part Number | VS-12CWQ03FNTRPBF |
|---|
| Manufacturer | Vishay Semiconductor Diodes Division |
|---|
| Description | DIODE ARRAY SCHOTTKY 30V 6A DPAK |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Discrete Semiconductor Products |
|---|
| Series | - |
|---|
| Family | Diodes, Rectifiers - Arrays |
|---|
| PCN Assembly/Origin |
DD-007-2014 Rev.0 14/Apr/2014
|
|---|
| Standard Package | 1 |
|---|
| Packaging | Digi-Reel? |
|---|
| Diode Configuration | 1 Pair Common Cathode |
|---|
| Diode Type | Schottky |
|---|
| Voltage - DC Reverse (Vr) (Max) | 30V |
|---|
| Current - Average Rectified (Io) (per Diode) | 6A |
|---|
| Voltage - Forward (Vf) (Max) @ If | 470mV @ 6A |
|---|
| Speed | Fast Recovery = 200mA (Io) |
|---|
| Reverse Recovery Time (trr) | - |
|---|
| Current - Reverse Leakage @ Vr | 3mA @ 30V |
|---|
| Mounting Type | Surface Mount |
|---|

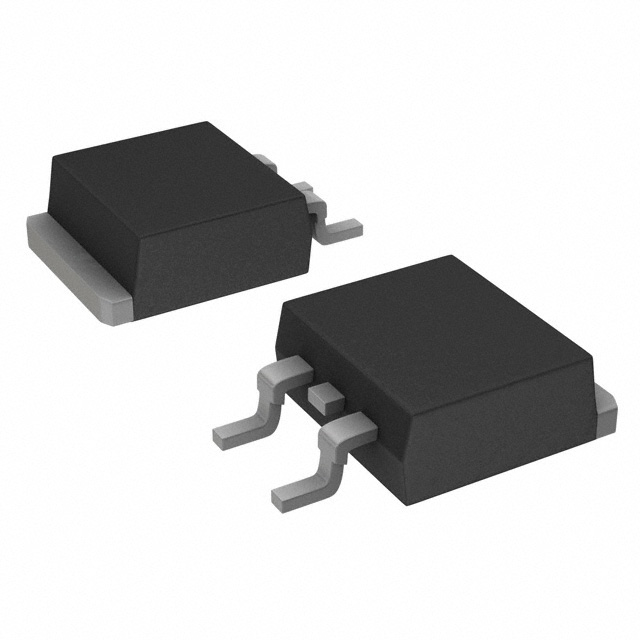

| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
|---|
| Supplier Device Package | D-PAK (TO-252AA) |
|---|
| Online Catalog | Schottky Diode Array |
|---|
| Other Names | VS-12CWQ03FNTRPBFGIDKR |
|---|
