| Part Number | DZ3S100D0L |
|---|
| Manufacturer | Panasonic Electronic Components |
|---|
| Description | DIODE ZENER ARRAY 10V SSMINI3 |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Discrete Semiconductor Products |
|---|
| Series | - |
|---|
| Family | Diodes - Zener - Arrays |
|---|
| Product Training Modules |
Zener Diodes
|
|---|
| EDA / CAD Models |
Download from Accelerated Designs |
|---|
| Standard Package | 1 |
|---|
| Packaging | Digi-Reel? |
|---|
| Configuration | 1 Pair Common Anode |
|---|
| Voltage - Zener (Nom) (Vz) | 10V |
|---|
| Tolerance | - |
|---|
| Power - Max | 150mW |
|---|
| Impedance (Max) (Zzt) | 30 Ohm |
|---|
| Current - Reverse Leakage @ Vr | 50nA @ 7V |
|---|
| Voltage - Forward (Vf) (Max) @ If | 1V @ 10mA |
|---|
| Operating Temperature | - |
|---|
| Mounting Type | Surface Mount |
|---|

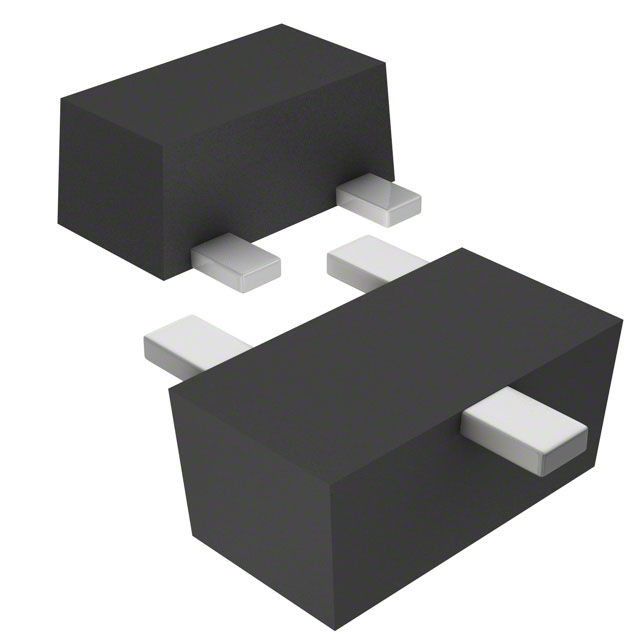

| Package / Case | SC-89, SOT-490 |
|---|
| Supplier Device Package | SS-Mini3-F3-B |
|---|
| Online Catalog | Silicon Epitaxial Planar Type Zener Diode Array |
|---|
| Other Names | DZ3S100D0LDKR |
|---|
