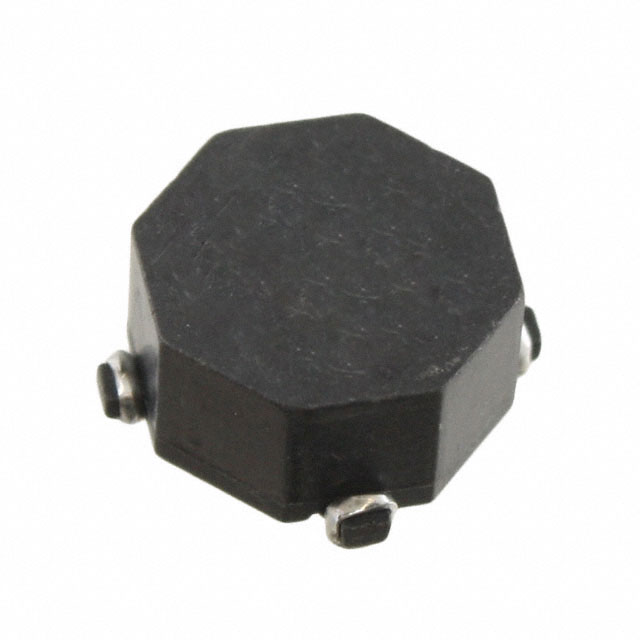

| Part Number | CTX150-4A-R |
|---|
| Manufacturer | Eaton Bussmann |
|---|
| Description | INDUCT ARRAY 2 COIL 153.5UH SMD |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Inductors, Coils, Chokes |
|---|
| Series | OCTA-PAC? PLUS |
|---|
| Family | Arrays, Signal Transformers |
|---|
| Product Training Modules |
SEPIC Converter
|
|---|
| PCN Assembly/Origin |
Multiple Devices 31/Aug/2013
Coiltronics Magnetics Facility 31/Aug/2013
|
|---|
| EDA / CAD Models |
Download from Accelerated Designs |
|---|
| Standard Package | 1 |
|---|
| Packaging | Cut Tape (CT) |
|---|
| Number of Coils | 2 |
|---|
| Inductance - Connected In Series | 613.9μH |
|---|
| Inductance - Connected In Parallel | 153.5μH |
|---|
| Tolerance | ±25% |
|---|
| Current Rating - Parallel | 1.1A |
|---|
| Current Rating - Series | 550mA |
|---|
| Current Saturation - Parallel | 1.07A |
|---|
| Current Saturation - Series | 540mA |
|---|
| DC Resistance (DCR) - Parallel | 365 mOhm Max |
|---|
| DC Resistance (DCR) - Series | 1.462 Ohm Max |
|---|
| Shielding | Unshielded |
|---|
| Operating Temperature | -40°C ~ 85°C |
|---|
| Mounting Type | Surface Mount |
|---|
| Package / Case | Nonstandard |
|---|
| Size / Dimension | 0.550" L x 0.550" W (13.97mm x 13.97mm) |
|---|
| Height | 0.250" (6.35mm) |
|---|
| Online Catalog | Econo-Pac?, OCTA-PAC?, OCTA-PAC? Plus Series |
|---|
| Other Names | 513-1725-1 |
|---|
