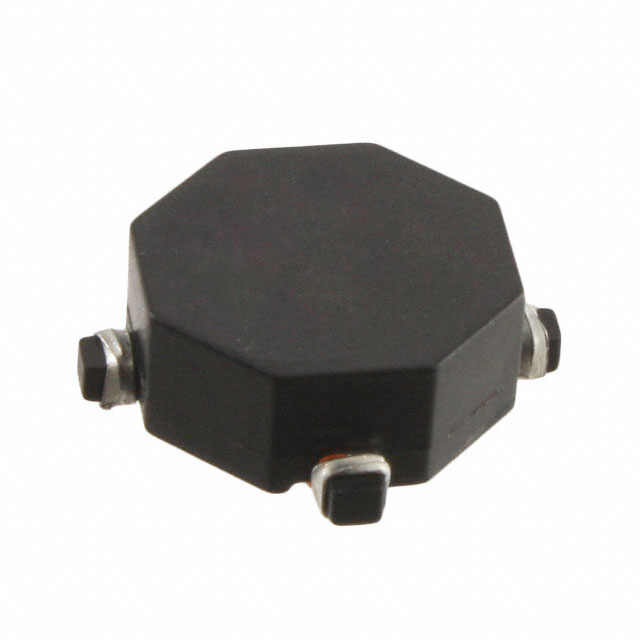

| Part Number | CTX100-1P-R |
|---|
| Manufacturer | Eaton Bussmann |
|---|
| Description | INDUCT ARRAY 2 COIL 99.01UH SMD |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Inductors, Coils, Chokes |
|---|
| Series | Econo-Pac? |
|---|
| Family | Arrays, Signal Transformers |
|---|
| PCN Assembly/Origin |
Multiple Devices 31/Aug/2013
Coiltronics Magnetics Facility 31/Aug/2013
|
|---|
| EDA / CAD Models |
Download from Accelerated Designs |
|---|
| Standard Package | 1,100 |
|---|
| Packaging | Tape & Reel (TR) |
|---|
| Number of Coils | 2 |
|---|
| Inductance - Connected In Series | 396.06μH |
|---|
| Inductance - Connected In Parallel | 99.01μH |
|---|
| Tolerance | ±20% |
|---|
| Current Rating - Parallel | 540mA |
|---|
| Current Rating - Series | 270mA |
|---|
| Current Saturation - Parallel | - |
|---|
| Current Saturation - Series | - |
|---|
| DC Resistance (DCR) - Parallel | 557 mOhm Max |
|---|
| DC Resistance (DCR) - Series | 2.227 Ohm Max |
|---|
| Shielding | Unshielded |
|---|
| Operating Temperature | -40°C ~ 85°C |
|---|
| Mounting Type | Surface Mount |
|---|
| Package / Case | Nonstandard |
|---|
| Size / Dimension | 0.450" L x 0.450" W (11.43mm x 11.43mm) |
|---|
| Height | 0.165" (4.19mm) |
|---|
| Online Catalog | Econo-Pac?, OCTA-PAC?, OCTA-PAC? Plus Series |
|---|
| Other Names | 513-1036-2CTX100-1PCTX1001PR |
|---|
