| Part Number | 744870004 |
|---|
| Manufacturer | Wurth Electronics Inc |
|---|

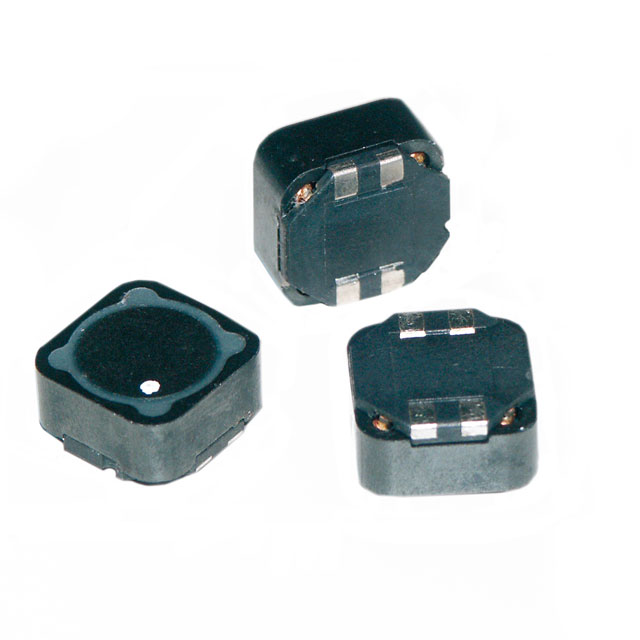

| Description | INDUCT ARRAY 2 COIL 4.7UH SMD |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Inductors, Coils, Chokes |
|---|
| Series | WE-DD |
|---|
| Family | Arrays, Signal Transformers |
|---|
| Product Training Modules |
Coupled Inductors for SEPIC Converter Applications
|
|---|
| Featured Product |
WE-DD Coupled Inductors Series
|
|---|
| 3D Model |
74487zzzz.igs
74487zzzz.stp
74487zzzz.wrl
|
|---|
| Standard Package | 1 |
|---|
| Packaging | Digi-Reel? |
|---|
| Number of Coils | 2 |
|---|
| Inductance - Connected In Series | 18.8μH |
|---|
| Inductance - Connected In Parallel | 4.7μH |
|---|
| Tolerance | ±20% |
|---|
| Current Rating - Parallel | 3.6A |
|---|
| Current Rating - Series | 1.8A |
|---|
| Current Saturation - Parallel | 8A |
|---|
| Current Saturation - Series | 4A |
|---|
| DC Resistance (DCR) - Parallel | 30 mOhm Max |
|---|
| DC Resistance (DCR) - Series | - |
|---|
| Shielding | Shielded |
|---|
| Operating Temperature | -40°C ~ 125°C |
|---|
| Mounting Type | Surface Mount |
|---|
| Package / Case | Nonstandard |
|---|
| Size / Dimension | 0.492" L x 0.492" W (12.50mm x 12.50mm) |
|---|
| Height | 0.335" (8.50mm) |
|---|
| Related Products | LT3761IMSE#PBF-ND - IC LED DRIVER CTRLR DIM 16MSOPLT3761HMSE#PBF-ND - IC LED DRIVER CTRLR DIM 16MSOPLT3761EMSE#PBF-ND - IC LED DRIVER CTRLR DIM 16MSOPLT3761EMSE#TRPBF-ND - IC LED DRIVER CTRLR DIM 16MSOPLT3761IMSE#TRPBF-ND - IC LED DRIVER CTRLR DIM 16MSOPLT3761HMSE#TRPBF-ND - IC LED DRIVER CTRLR DIM 16MSOP |
|---|
| Other Names | 732-2324-6 |
|---|
