| Part Number | 744878470 |
|---|
| Manufacturer | Wurth Electronics Inc |
|---|

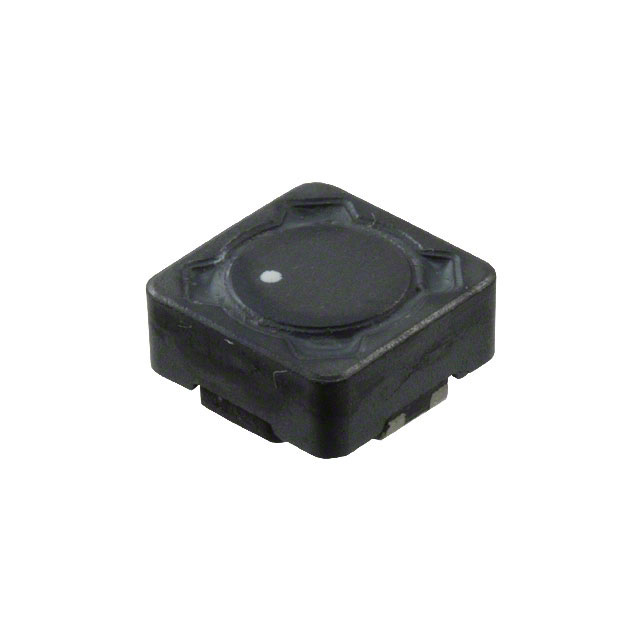

| Description | INDUCT ARRAY 2 COIL 47UH SMD |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Inductors, Coils, Chokes |
|---|
| Series | WE-DD |
|---|
| Family | Arrays, Signal Transformers |
|---|
| Product Training Modules |
Coupled Inductors for SEPIC Converter Applications
|
|---|
| Featured Product |
WE-DD Coupled Inductors Series
|
|---|
| 3D Model |
WE-DD_7332_Straight.igs
WE-DD_7332_Straight.stp
WE-DD_7332_Straight.wrl
|
|---|
| Standard Package | 1,000 |
|---|
| Packaging | Tape & Reel (TR) |
|---|
| Number of Coils | 2 |
|---|
| Inductance - Connected In Series | 188μH |
|---|
| Inductance - Connected In Parallel | 47μH |
|---|
| Tolerance | ±20% |
|---|
| Current Rating - Parallel | 900mA |
|---|
| Current Rating - Series | 450mA |
|---|
| Current Saturation - Parallel | 1A |
|---|
| Current Saturation - Series | 500mA |
|---|
| DC Resistance (DCR) - Parallel | 750 mOhm Max |
|---|
| DC Resistance (DCR) - Series | - |
|---|
| Shielding | Shielded |
|---|
| Operating Temperature | -40°C ~ 125°C |
|---|
| Mounting Type | Surface Mount |
|---|
| Package / Case | Nonstandard |
|---|
| Size / Dimension | 0.287" L x 0.287" W (7.30mm x 7.30mm) |
|---|
| Height | 0.157" (4.00mm) |
|---|
| Online Catalog | WE-DD Series |
|---|
| Related Products | 296-26984-2-ND - IC REG BUCK ADJ 1.5A 10MSOP296-26984-1-ND - IC REG BUCK ADJ 1.5A 10MSOP296-26984-6-ND - IC REG BUCK ADJ 1.5A 10MSOP296-23864-5-ND - IC REG BUCK ADJ 1.5A 10MSOPTPS54160DGQRG4-ND - IC REG BUCK ADJ 1.5A 10MSOPTPS54160DGQG4-ND - IC REG BUCK ADJ 1.5A 10MSOP |
|---|
| Other Names | 732-2306-2 |
|---|
