| Part Number | 20020006-G051B01LF |
|---|
| Manufacturer | FCI |
|---|

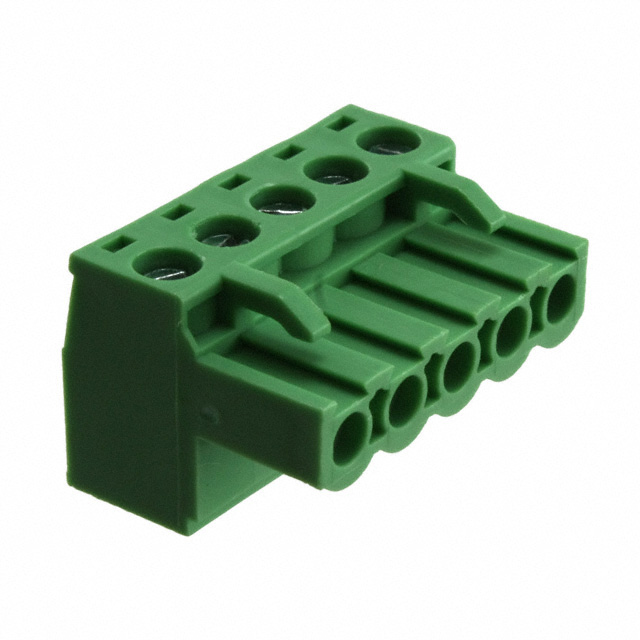

| Description | TERM BLOCK PLUG 5POS STR 5MM |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | 01-500 |
|---|
| Family | Terminal Blocks - Headers, Plugs and Sockets |
|---|
| Product Training Modules |
Terminal Blocks
|
|---|
| Featured Product |
Signal and Power Terminal Blocks
|
|---|
| PCN Design/Specification |
Multiple Devices Design 28/Apr/2014
|
|---|
| PCN Part Number |
Anytek Integration 02/Apr/2015
|
|---|
| Standard Package | 150 |
|---|
| Packaging | Bulk |
|---|
| Type | Plug, Female Sockets |
|---|
| Number of Positions | 5 |
|---|
| Positions Per Level | 5 |
|---|
| Number of Levels | 1 |
|---|
| Pitch | 0.197" (5.00mm) |
|---|
| Header Orientation | - |
|---|
| Plug Wire Entry | 180° |
|---|
| Termination Style | Screw - Rising Cage Clamp |
|---|
| Mounting Type | Free Hanging (In-Line) |
|---|
| Current - IEC | - |
|---|
| Voltage - IEC | - |
|---|
| Current - UL | 12A |
|---|
| Voltage - UL | 300V |
|---|
| Wire Gauge or Range - AWG | 12-24 AWG |
|---|
| Wire Gauge or Range - mm2 | 1-2.5mm2 |
|---|
| Color | Green |
|---|
| Operating Temperature | -40°C ~ 115°C |
|---|
| Contact Mating Finish | Tin |
|---|
| Features | Retention Latches (Non-Wire Side) |
|---|
| Mating Products | 609-3855-ND - TERM BLOCK HDR 5POS VERT 5MM609-3866-ND - TERM BLOCK HDR 5POS R/A 5MM |
|---|
| Associated Product | 609-4058-ND - CODING KEY PLUG 5.00/5.08MM |
|---|
| Other Names | 609-3844 |
|---|
