| Part Number | 20020316-G081B01LF |
|---|
| Manufacturer | FCI |
|---|

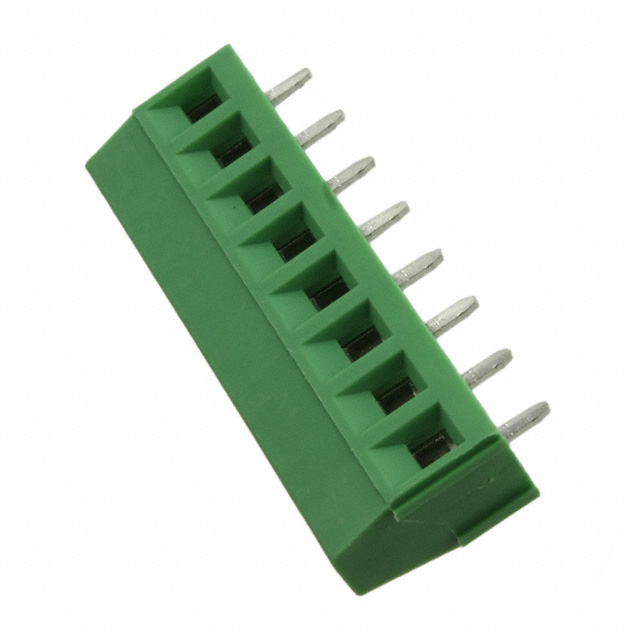

| Description | TERM BLOCK 8POS 5.00MM PCB HORIZ |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | 21-500 |
|---|
| Family | Terminal Blocks - Wire to Board |
|---|
| Product Training Modules |
Terminal Blocks
|
|---|
| Featured Product |
Signal and Power Terminal Blocks
|
|---|
| PCN Design/Specification |
Multiple Devices Design 28/Apr/2014
|
|---|
| PCN Part Number |
Anytek Integration 02/Apr/2015
|
|---|
| Standard Package | 160 |
|---|
| Packaging | Bulk |
|---|
| Number of Levels | 1 |
|---|
| Positions Per Level | 8 |
|---|
| Pitch | 0.197" (5.00mm) |
|---|
| Mating Orientation | Horizontal with Board |
|---|
| Current | 16A |
|---|
| Voltage | 300V |
|---|
| Wire Gauge | 12-28 AWG |
|---|
| Mounting Type | Through Hole |
|---|
| Wire Termination | Screw - Rising Cage Clamp |
|---|
| Features | Interlocking (Side) |
|---|
| Color | Green |
|---|
| Operating Temperature | -40°C ~ 115°C |
|---|
| Housing Material | Thermoplastic |
|---|
| Contact Material - Plating | Copper Alloy - Tin Plated |
|---|
| Clamp Material - Plating | Copper Alloy - Nickel Plated |
|---|
| Screw Material - Plating | Steel - Zinc Plated |
|---|
| Torque - Screw | 0.4 Nm (3.5 Lb-In) |
|---|
| Screw Thread | M3 |
|---|
| Online Catalog | 21-500 and 21-508 Series |
|---|
| Other Names | 20020316G081B01LF609-3933 |
|---|
