| Part Number | 4108 |
|---|---|
| Manufacturer | Keystone Electronics |

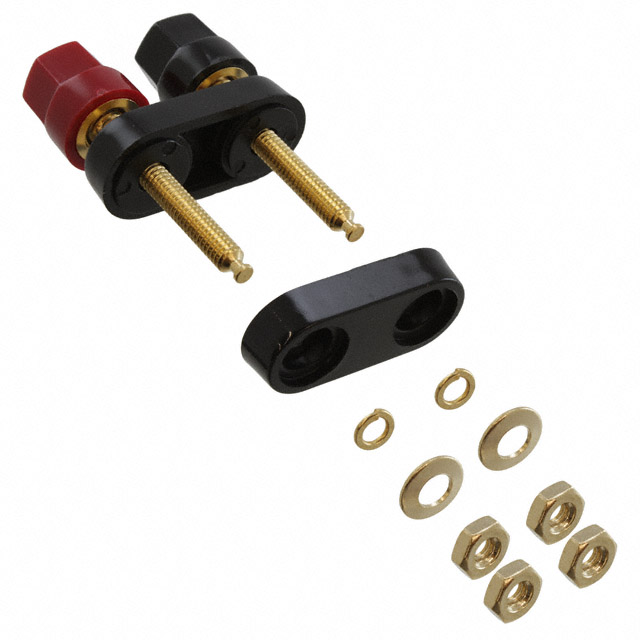

| Description | POST BINDING STD DL HEAD 8/32 AU |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 21 4 - Factory Stock |
| Minimum Order: $100 USD | |
| Request for Quote to us through Email or Phone call on quanitities greater than those displayed or for price adjustment. | |
4108
-
- USD 26.83
Product Details
| Part Number | 4108 |
|---|---|
| Manufacturer | Keystone Electronics |
| Description | POST BINDING STD DL HEAD 8/32 AU |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Category | Connectors, Interconnects |
| Series | - |
| Family | Banana and Tip Connectors - Binding Posts |
| Standard Package | 1 |
| Type | Standard, Dual |
| Head Style | Hex |
| Termination | Threaded and Turret |
| Termination Thread | 8-32 |
| Current Rating | 30A |
| Material - Body | Brass |
| Plating - Body | Gold |
| Color | Black, Red |
| Cross Hole Diameter | 0.093" (2.36mm) |
| Head Size | 0.480" OD x 0.625" L (12.19mm x 15.90mm) |
| Material - Insulation | Polyamide (PA), Nylon |
| Nut Material | Brass |
| Nut Plating | Gold |
| Panel Thickness | - |
| Voltage Rating | 1000VAC |
| Online Catalog | Keystone Electronics |
| Other Names | 36-41084108K4108K-ND |
