| Part Number | 205203-3 |
|---|
| Manufacturer | TE Connectivity AMP Connectors |
|---|

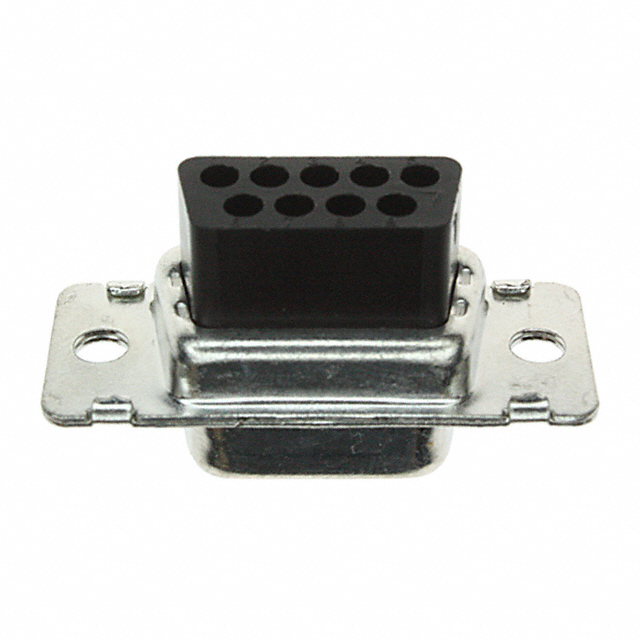

| Description | CONN D-SUB HOUSING RECEPT 9POS |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | AMPLIMITE HDP-20 |
|---|
| Family | D-Sub, D-Shaped Connectors - Housings |
|---|
| Other Related Documents |
Pnl Mnt Cutout Dim
|
|---|
| 3D Model |
205203-3.pdf
|
|---|
| PCN Design/Specification |
205203-y 04/Jun/2014
|
|---|
| PCN Other |
Multiple Devices Material 01/May/2014
|
|---|
| Standard Package | 800 |
|---|
| Packaging | Bulk |
|---|
| Connector Style | D-Sub |
|---|
| Connector Type | Receptacle for Female Contacts |
|---|
| Number of Positions | 9 |
|---|
| Number of Rows | 2 |
|---|
| Shell Size, Connector Layout | 1 (DE, E) |
|---|
| Contact Type | Signal |
|---|
| Mounting Type | Free Hanging (In-Line) |
|---|
| Flange Feature | Housing/Shell (Unthreaded) |
|---|
| Features | - |
|---|
| Shell Material, Finish | Steel, Tin Plated |
|---|
| Shell Finish Thickness | - |
|---|
| Note | Contacts Not Provided |
|---|
| Ingress Protection | - |
|---|
| Operating Temperature | - |
|---|
| Mating Cycles | - |
|---|
| Dielectric Material | Polyamide (PA), Nylon, Glass Filled |
|---|
| Color | Black |
|---|
| Online Catalog | AMPLIMITE HDP-20 Series |
|---|
| Kits | 5787054-1-ND - KIT MULTIPOSN HDP-20 WO/TOOL |
|---|
| Mating Products | A31920-ND - CONN D-SUB HOUSING PLUG 9POSA35199-ND - CONN D-SUB PLUG 9POS CRIMP |
|---|
| Associated Product | A1680TR-ND - CONN SOCKET 20-24AWG GOLD CRIMPA1680CT-ND - CONN SOCKET 20-24AWG GOLD CRIMPA31900TR-ND - CONN SOCKET 18-22AWG GOLD CRIMPA31900CT-ND - CONN SOCKET 18-22AWG GOLD CRIMPA1680-ND - CONN SOCKET 20-24AWG GOLD CRIMPA1009-ND - CONN SOCKET 20-24AWG GOLD CRIMPA9001-ND - CONN BACKSHELL DB9 PLASTICA |
|---|
| Other Names | 2052033A1031 |
|---|
