| Part Number | 10090931-S260ALF |
|---|
| Manufacturer | FCI |
|---|

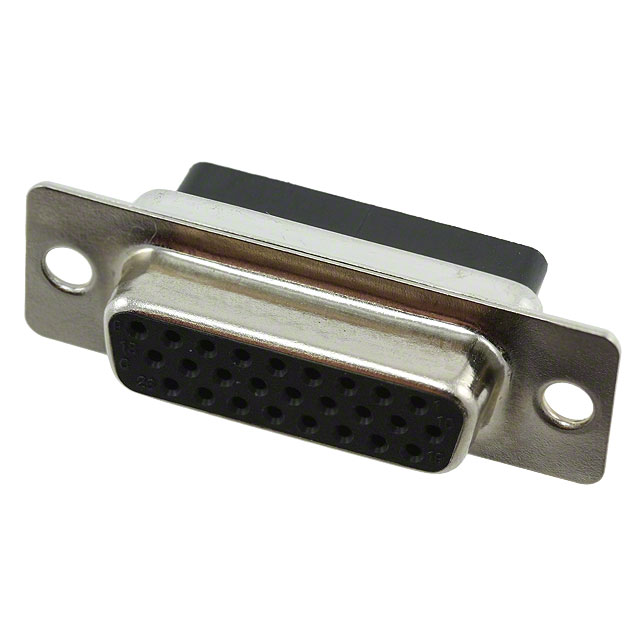

| Description | DSUB HD FAMLE SOCKET 26POS CRIMP |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | 10090931 |
|---|
| Family | D-Sub, D-Shaped Connectors - Housings |
|---|
| Featured Product |
D-Subminiature Connectors High Density
|
|---|
| PCN Obsolescence/ EOL |
High Desity D Sub Devices 11/Nov/2014
|
|---|
| Standard Package | 770 |
|---|
| Packaging | Bulk |
|---|
| Connector Style | D-Sub, High Density |
|---|
| Connector Type | Receptacle for Female Contacts |
|---|
| Number of Positions | 26 |
|---|
| Number of Rows | 3 |
|---|
| Shell Size, Connector Layout | 2 (DA, A) High Density |
|---|
| Contact Type | Signal |
|---|
| Mounting Type | Free Hanging (In-Line) |
|---|
| Flange Feature | Housing/Shell (Unthreaded) |
|---|
| Features | - |
|---|
| Shell Material, Finish | Steel, Tin-Nickel Plated |
|---|
| Shell Finish Thickness | 100μin (2.54μm) |
|---|
| Note | Contacts Not Provided |
|---|
| Ingress Protection | - |
|---|
| Operating Temperature | -55°C ~ 105°C |
|---|
| Mating Cycles | - |
|---|
| Dielectric Material | Thermoplastic, Glass Filled |
|---|
| Color | Black |
|---|
| Mating Products | 609-4023-ND - CONN DSUB HD PLUG 26POS R/A SLDR609-4037-ND - DSUB HD MALE PIN 26POS CRIMP |
|---|
| Associated Product | 609-4041-ND - DSUB HD FML 1POS LOOSE CRMP CNCT |
|---|
| Other Names | 10090931S260ALF609-4039 |
|---|
