| Part Number | 6200 |
|---|
| Manufacturer | 3M |
|---|

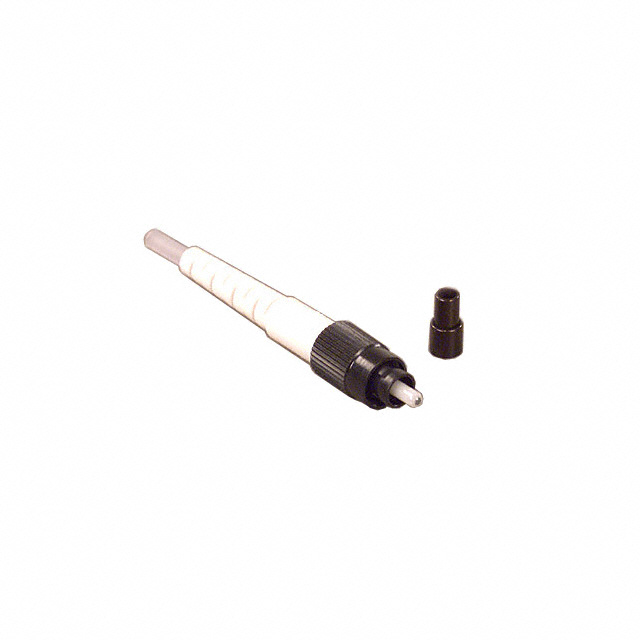

| Description | CONN FIBER FC PLUG SMPLX 125UM |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | - |
|---|
| Family | Fiber Optic Connectors |
|---|
| MSDS Material Safety Datasheet |
Connectors w/ Hot Melt Adhesive: 6100,6200,6300,8100,8300
|
|---|
| Standard Package | 60 |
|---|
| Connector Style | FC |
|---|
| Connector Type | Plug |
|---|
| Simplex/Duplex | Simplex |
|---|
| Mode | Multimode |
|---|
| Fiber Core Diameter | - |
|---|
| Fiber Cladding Diameter | 125μm |
|---|
| Cable Diameter | 2.9mm |
|---|
| Mounting Type | Free Hanging (In-Line) |
|---|
| Fastening Type | Threaded |
|---|
| Housing Color | Gray |
|---|
| Boot Color | White |
|---|
| Ingress Protection | - |
|---|
| Features | Hot Melt, Strain Relief |
|---|
| Attenuation - Typ | -0.2dB |
|---|
| Reflection | -25dB |
|---|
| Housing Material | Thermoplastic Elastomer (TPE) |
|---|
| Ferrule Material | Zirconia |
|---|
| Body Material | Engineered Resin |
|---|
| Operating Temperature | -10°C ~ 60°C |
|---|
| Mating Cycles | 500 |
|---|
| Associated Product | SC-FC-ND - CONN HOLDER FOR FC/SC/ST PLUGS |
|---|
| Other Names | 5400791717540079171756200 CONN HOT MELT80-6107-6541-680-6111-2758-2806107654168061112758-280611127582MF6200 |
|---|
