| Part Number | 6100-B1K-S |
|---|
| Manufacturer | 3M |
|---|

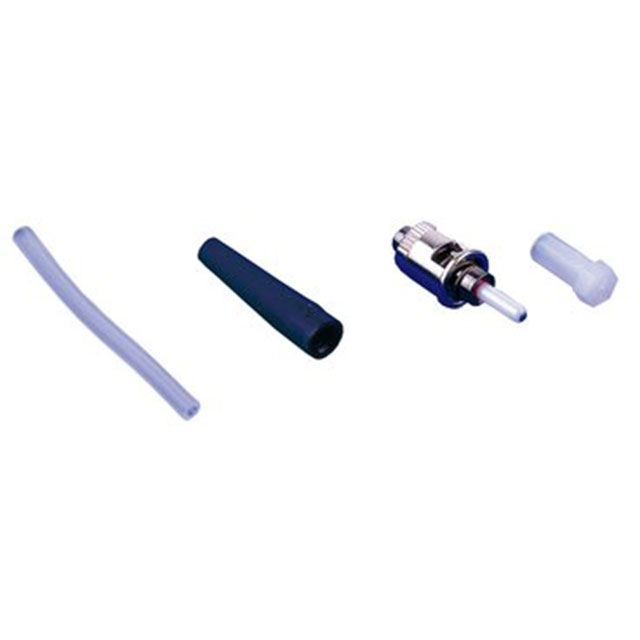

| Description | CONN FIBER ST PLUG SMPLX 125UM |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | - |
|---|
| Family | Fiber Optic Connectors |
|---|
| MSDS Material Safety Datasheet |
Connectors w/ Hot Melt Adhesive: 6100,6200,6300,8100,8300
|
|---|
| Standard Package | 1,000 |
|---|
| Connector Style | ST |
|---|
| Connector Type | Plug |
|---|
| Simplex/Duplex | Simplex |
|---|
| Mode | Multimode |
|---|
| Fiber Core Diameter | - |
|---|
| Fiber Cladding Diameter | 125μm |
|---|
| Cable Diameter | 0.9mm |
|---|
| Mounting Type | Free Hanging (In-Line) |
|---|
| Fastening Type | Bayonet Lock |
|---|
| Housing Color | Silver |
|---|
| Boot Color | Black |
|---|
| Ingress Protection | - |
|---|
| Features | Dust Cap, Hot Melt, Strain Relief |
|---|
| Attenuation - Typ | -0.2dB |
|---|
| Reflection | -25dB |
|---|
| Housing Material | - |
|---|
| Ferrule Material | Zirconia |
|---|
| Body Material | Zinc |
|---|
| Operating Temperature | -40°C ~ 85°C |
|---|
| Mating Cycles | 500 |
|---|
| Associated Product | SC-FC-ND - CONN HOLDER FOR FC/SC/ST PLUGS |
|---|
| Other Names | 000511151545910511151545980611153810 |
|---|
