| Part Number | 2213188-1 |
|---|
| Manufacturer | TE Connectivity AMP Connectors |
|---|

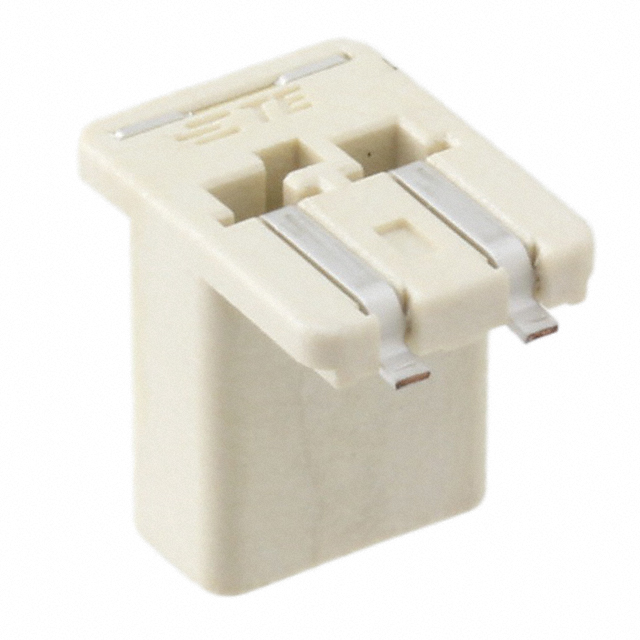

| Description | CONN SSL RCPT 2POS 3.3MM SOLDER |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | - |
|---|
| Family | Solid State Lighting Connectors |
|---|
| Design Resources |
Lighting Product Selector
|
|---|
| 3D Model |
2213188-1.pdf
|
|---|
| Standard Package | 400 |
|---|
| Packaging | Tape & Reel (TR) |
|---|
| Style | Board to Card Edge |
|---|
| Connector Type | Receptacle |
|---|
| Number of Positions | 2 |
|---|
| Mounting Type | Surface Mount, Bottom Entry, Through Board |
|---|
| Termination | Solder |
|---|
| Pitch | 0.130" (3.30mm) |
|---|
| Fastening Type | - |
|---|
| Features | 1.00mm Thick PCB, Solder Retention |
|---|
| Housing Color | Natural |
|---|
| Wire Gauge | - |
|---|
| Contact Material | Copper Alloy |
|---|
| Contact Finish | Tin |
|---|
| Housing Material | Thermoplastic |
|---|
| Operating Temperature | -20°C ~ 130°C |
|---|
| Voltage Rating | 400V |
|---|
| Current Rating | 3A |
|---|
| Ingress Protection | - |
|---|
| Mating Cycles | - |
|---|
| Other Names | A116134TR |
|---|
