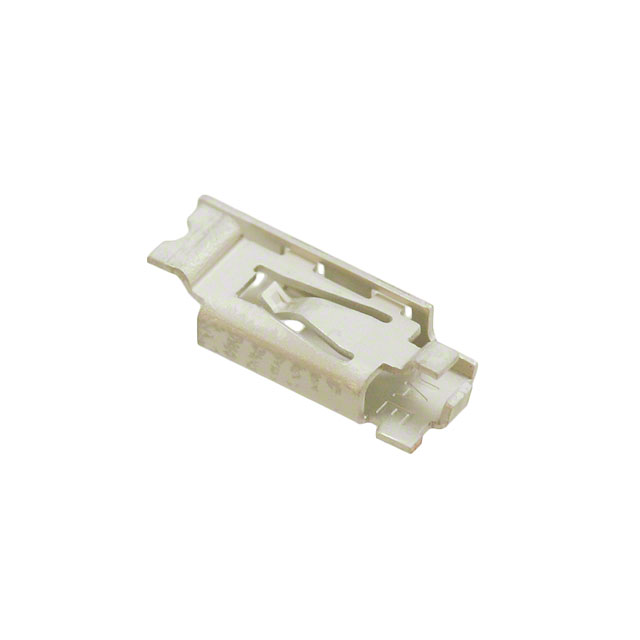

| Part Number | ES5S001JF1R5500 |
|---|
| Manufacturer | JAE Electronics |
|---|
| Description | CONN SSL SCKT CONTACT 1POS SLDR |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | ES5 |
|---|
| Family | Solid State Lighting Connectors |
|---|
| Product Training Modules |
ES5 Series One-Position Board-to-Cable Connector for Lighting
|
|---|
| Design Resources |
Lighting Product Selector
|
|---|
| Featured Product |
LED Lighting Internal Connectors
|
|---|
| Standard Package | 1 |
|---|
| Packaging | Cut Tape (CT) |
|---|
| Style | Board to Cable/Wire |
|---|
| Connector Type | Contact, Socket |
|---|
| Number of Positions | 1 |
|---|
| Mounting Type | Surface Mount, Right Angle |
|---|
| Termination | Solder |
|---|
| Pitch | - |
|---|
| Fastening Type | Latch Holder |
|---|
| Features | - |
|---|
| Housing Color | - |
|---|
| Wire Gauge | - |
|---|
| Contact Material | Copper Alloy |
|---|
| Contact Finish | Tin |
|---|
| Housing Material | - |
|---|
| Operating Temperature | -40°C ~ 105°C |
|---|
| Voltage Rating | - |
|---|
| Current Rating | 4A |
|---|
| Ingress Protection | - |
|---|
| Mating Cycles | 20 |
|---|
| Online Catalog | ES5 Series |
|---|
| Other Names | 670-2615-1 |
|---|
