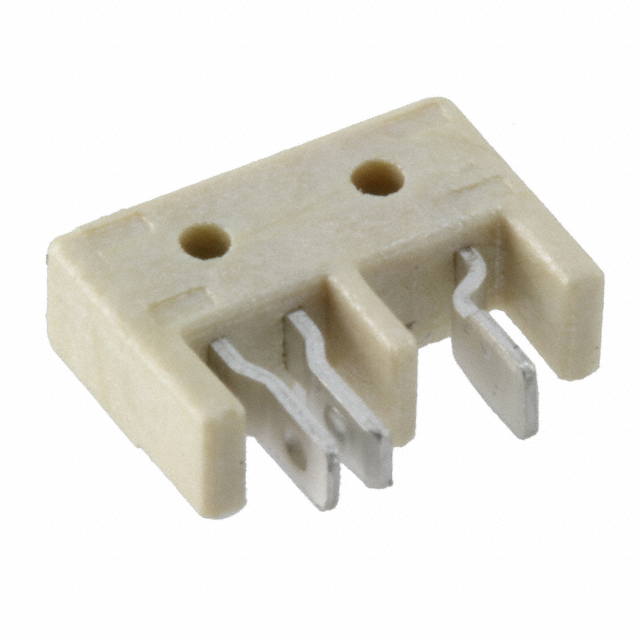

| Part Number | 1971567-1 |
|---|
| Manufacturer | TE Connectivity AMP Connectors |
|---|
| Description | CONN SSL RCPT & BLADE 2POS 3MM |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | - |
|---|
| Family | Solid State Lighting Connectors |
|---|
| Design Resources |
Lighting Product Selector
|
|---|
| 3D Model |
1971567-1.pdf
|
|---|
| Standard Package | 1 |
|---|
| Packaging | Cut Tape (CT) |
|---|
| Style | Board to Board |
|---|
| Connector Type | Blade and Receptacle, Hermaphroditic |
|---|
| Number of Positions | 2 |
|---|
| Mounting Type | Board Edge, Surface Mount, Right Angle |
|---|
| Termination | Solder |
|---|
| Pitch | 0.118" (3.00mm) |
|---|
| Fastening Type | - |
|---|
| Features | - |
|---|
| Housing Color | Natural |
|---|
| Wire Gauge | - |
|---|
| Contact Material | Brass; Copper Alloy |
|---|
| Contact Finish | Tin |
|---|
| Housing Material | Thermoplastic |
|---|
| Operating Temperature | -40°C ~ 105°C |
|---|
| Voltage Rating | 300V |
|---|
| Current Rating | 3A |
|---|
| Ingress Protection | - |
|---|
| Mating Cycles | - |
|---|
| Other Names | A117914CT |
|---|
