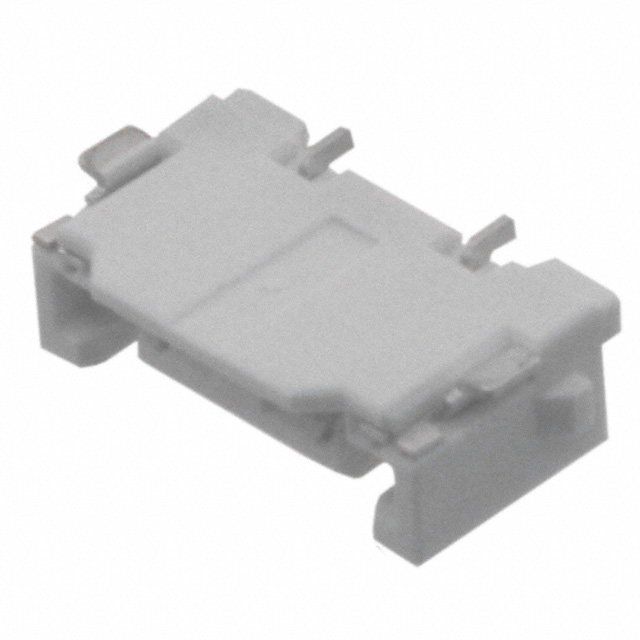

| Part Number | 5034710200 |
|---|
| Manufacturer | Molex, LLC |
|---|
| Description | CONN SSL RCPT 2POS 3.7MM SOLDER |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | Flexi-Mate? 503471 |
|---|
| Family | Solid State Lighting Connectors |
|---|
| Design Resources |
Lighting Product Selector
|
|---|
| 3D Model |
503471-0200.stp
|
|---|
| Standard Package | 1 |
|---|
| Packaging | Cut Tape (CT) |
|---|
| Style | Board to Board or Cable |
|---|
| Connector Type | Receptacle |
|---|
| Number of Positions | 2 |
|---|
| Mounting Type | Surface Mount, Right Angle |
|---|
| Termination | Solder |
|---|
| Pitch | 0.146" (3.70mm) |
|---|
| Fastening Type | Latch Lock |
|---|
| Features | Solder Retention |
|---|
| Housing Color | White |
|---|
| Wire Gauge | - |
|---|
| Contact Material | Phosphor Bronze |
|---|
| Contact Finish | Tin |
|---|
| Housing Material | Polyamide (PA), Nylon, Glass Filled |
|---|
| Operating Temperature | -40°C ~ 80°C |
|---|
| Voltage Rating | 500V |
|---|
| Current Rating | 2A |
|---|
| Ingress Protection | - |
|---|
| Mating Cycles | 15 |
|---|
| Online Catalog | Flexi-Mate? 503471 Series |
|---|
| Mating Products | WM4555TR-ND - CONN SSL PLUG 2POS 3.7MM SOLDERWM4555CT-ND - CONN SSL PLUG 2POS 3.7MM SOLDERWM4555DKR-ND - CONN SSL PLUG 2POS 3.7MM SOLDERWM4549-ND - CONN SSL PLUG HSG 2POS 3.7MMWM10335-ND - CONN WIRE LOOP FOR FLEXI-MATEWM10332-ND - FLEXIMATE TO FLEXIMATE 46MMWM10333-ND - FLEXIMATE TO FLEXIMATE 115MMW |
|---|
| Other Names | WM4554CT |
|---|
