| Part Number | 1-1971748-2 |
|---|
| Manufacturer | TE Connectivity AMP Connectors |
|---|

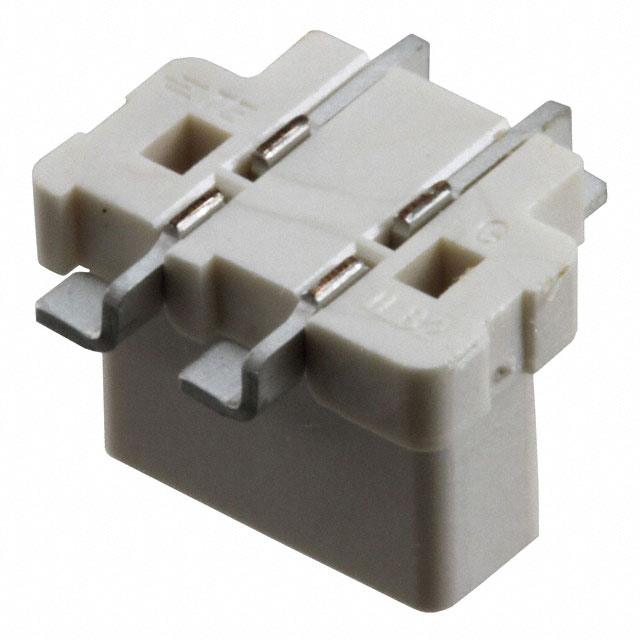

| Description | CONN SSL SOCKET 2POS 2.5MM SLDR |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | - |
|---|
| Family | Solid State Lighting Connectors |
|---|
| Design Resources |
Lighting Product Selector
|
|---|
| Featured Product |
ITB Card Edge Connector
TE Conn-AMP - Solid State lighting
|
|---|
| 3D Model |
1-1971748-2.pdf
|
|---|
| Standard Package | 1 |
|---|
| Packaging | Cut Tape (CT) |
|---|
| Style | Board to Card Edge |
|---|
| Connector Type | Socket |
|---|
| Number of Positions | 2 |
|---|
| Mounting Type | Surface Mount, Bottom Entry, Through Board |
|---|
| Termination | Solder |
|---|
| Pitch | 0.098" (2.50mm) |
|---|
| Fastening Type | - |
|---|
| Features | Board Lock |
|---|
| Housing Color | Natural |
|---|
| Wire Gauge | - |
|---|
| Contact Material | Copper Alloy |
|---|
| Contact Finish | Tin |
|---|
| Housing Material | Thermoplastic |
|---|
| Operating Temperature | -40°C ~ 125°C |
|---|
| Voltage Rating | 250V |
|---|
| Current Rating | 3A |
|---|
| Ingress Protection | - |
|---|
| Mating Cycles | - |
|---|
| Other Names | A108815CT |
|---|
