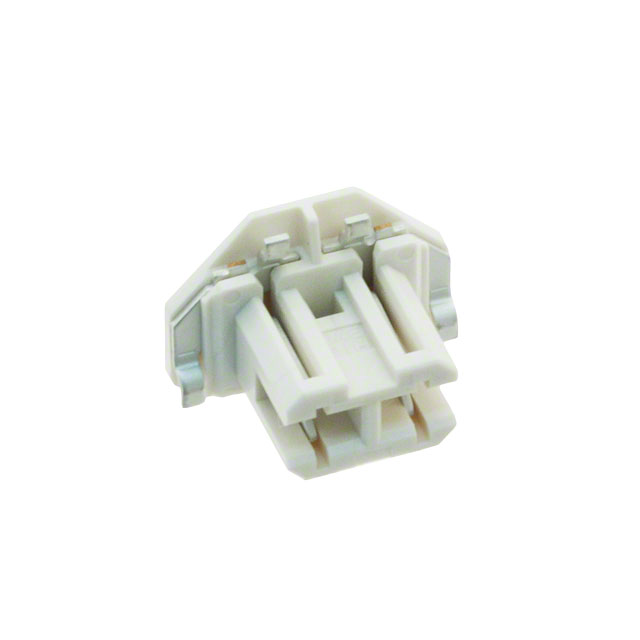

| Part Number | ES3B002WF1R1000 |
|---|
| Manufacturer | JAE Electronics |
|---|
| Description | CONN SSL RCPT 2POS 3.6MM SOLDER |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | ES3 |
|---|
| Family | Solid State Lighting Connectors |
|---|
| Product Training Modules |
ES3 (WF1 type) Card Edge Connector for LED Lighting
ES3 (WF2 type) LED Power Supply Board-to-Cable Connector
|
|---|
| Design Resources |
Lighting Product Selector
|
|---|
| Featured Product |
LED Lighting Internal Connectors
|
|---|
| Standard Package | 1 |
|---|
| Packaging | Cut Tape (CT) |
|---|
| Style | Board to Board - Card Edge |
|---|
| Connector Type | Receptacle |
|---|
| Number of Positions | 2 |
|---|
| Mounting Type | Surface Mount, Bottom Entry, Through Board |
|---|
| Termination | Solder |
|---|
| Pitch | 0.142" (3.60mm) |
|---|
| Fastening Type | - |
|---|
| Features | - |
|---|
| Housing Color | White |
|---|
| Wire Gauge | - |
|---|
| Contact Material | Copper Alloy |
|---|
| Contact Finish | Tin |
|---|
| Housing Material | Liquid Crystal Polymer (LCP) |
|---|
| Operating Temperature | -40°C ~ 105°C |
|---|
| Voltage Rating | 200V |
|---|
| Current Rating | 1A |
|---|
| Ingress Protection | - |
|---|
| Mating Cycles | 20 |
|---|
| Online Catalog | ES3 Series |
|---|
| Other Names | 670-2575-1 |
|---|
